Availability: | |
---|---|
APPLICATION

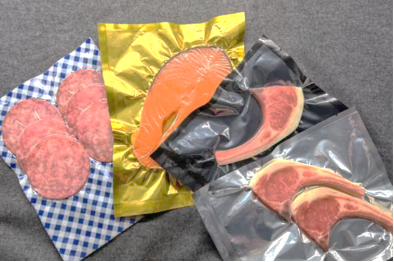

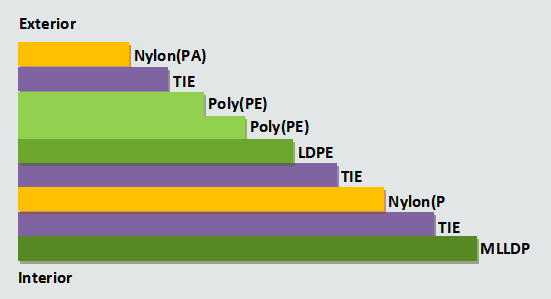

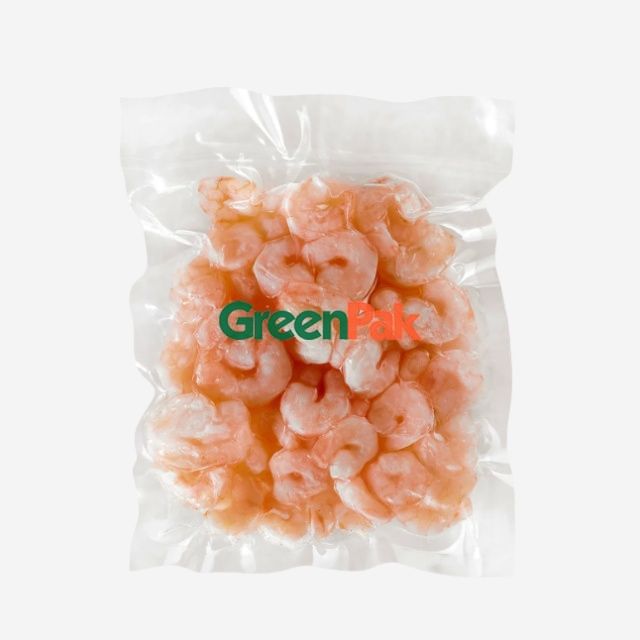

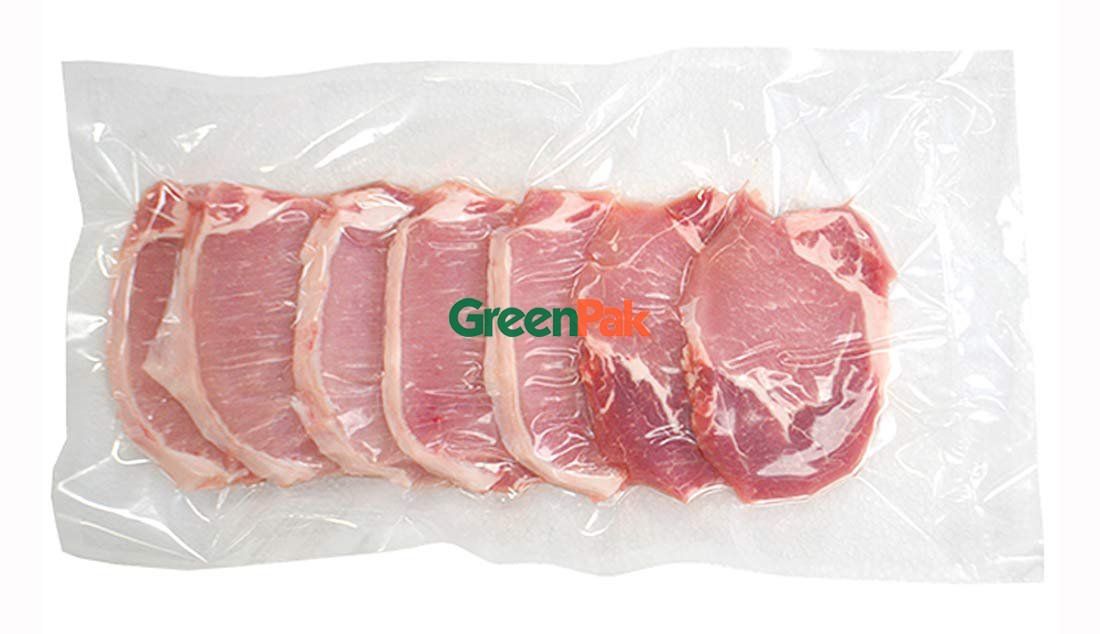

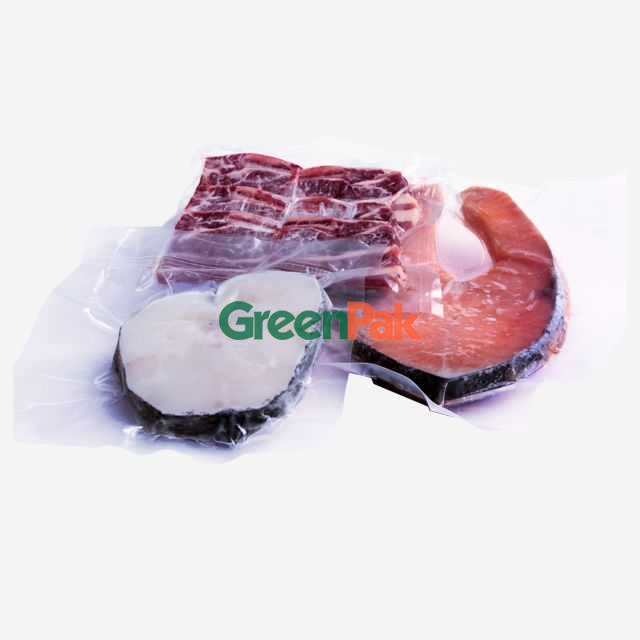

GreenPak 2 sides or 3 sides seal vacuum bags are engineered using 7 layers or 9 layers multi-layer coextruded films by using combinations of Nylon (PA) and Polythene (PE) and EVOH. | ![]() | |

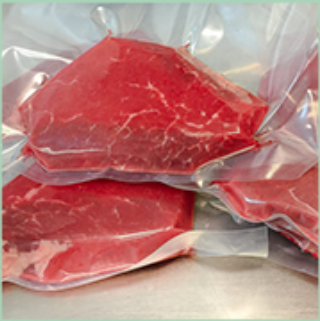

GreenPak pouches are available in various sizes, having great strength and high clarity, and providing additional protection against oxygen & moisture. | ||

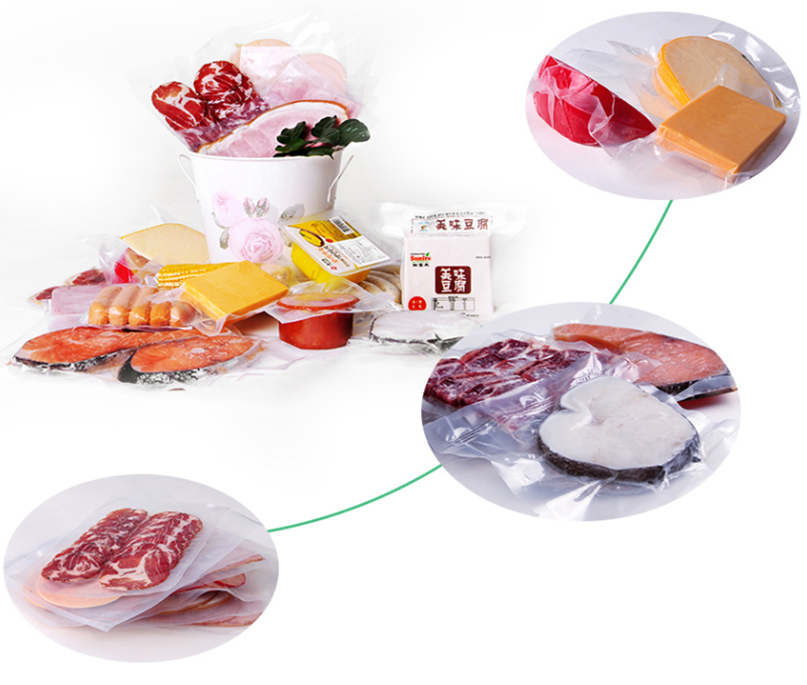

Fresh Meat | Bread | |
Fish | Sauces and Soups | |
Poultry | Processed Produce | |

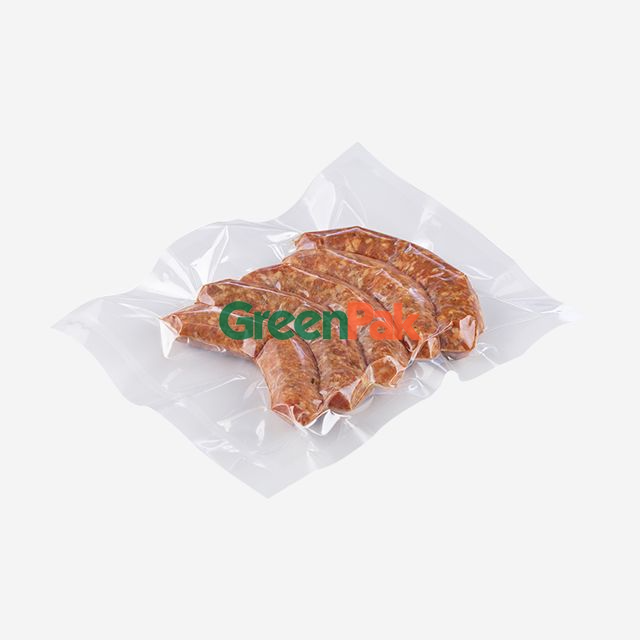

Sausages and Cured Meats | Boil in the Bag and Pasteurization | |
Cooked Meats | Ready Meals | |
Cheese | Non Food |

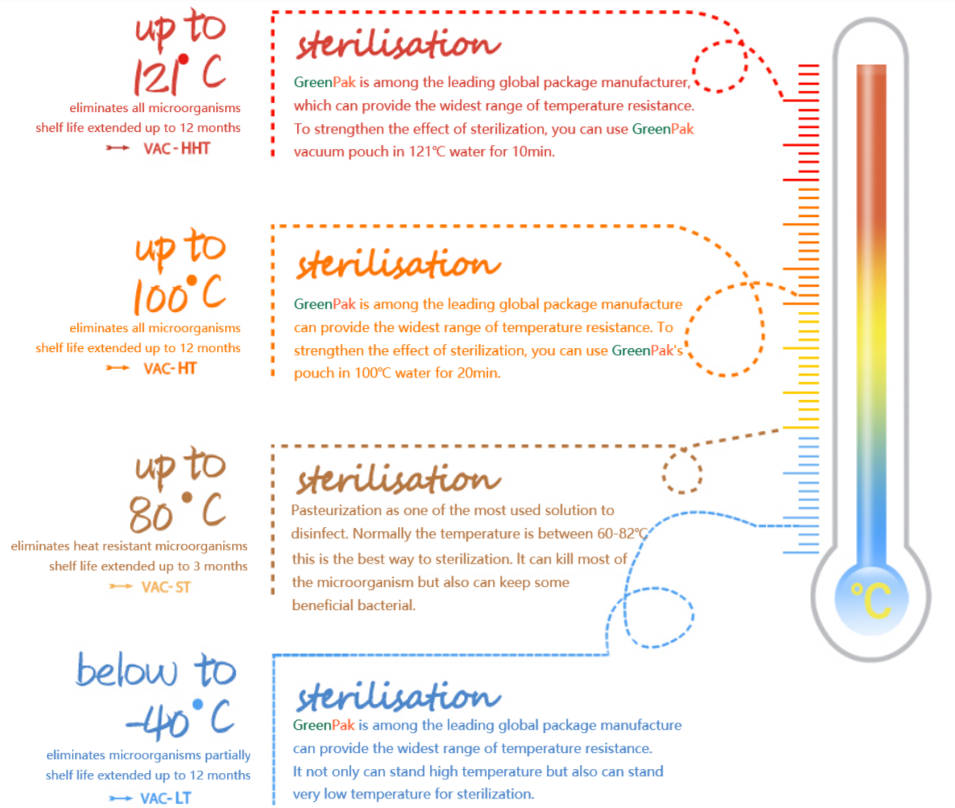

TEMPERATURE
GreenPak vacuum pouch with a wide range of temperature resistance.
lt can meet your requirement of four process for the preservation of food stuff.
Three specific solution: Higher temperature, low temperature and freeze.
HIGH BARRIER
Transparency, good gloss
The polarity is strong, the printing ink adhesion is good, the printing effect is beautiful
Oil resistance, organic resistance, good solvent
It has excellent gas barrier properties, especially with very low oxygen permeability
It has a good aroma retention
Certifications
This production has got the certificate of ISO9001, ISO14001, BRCS, SQF, SGS, FDA, CFIA, QS etc. All resins meet the FDA and EU requirement.

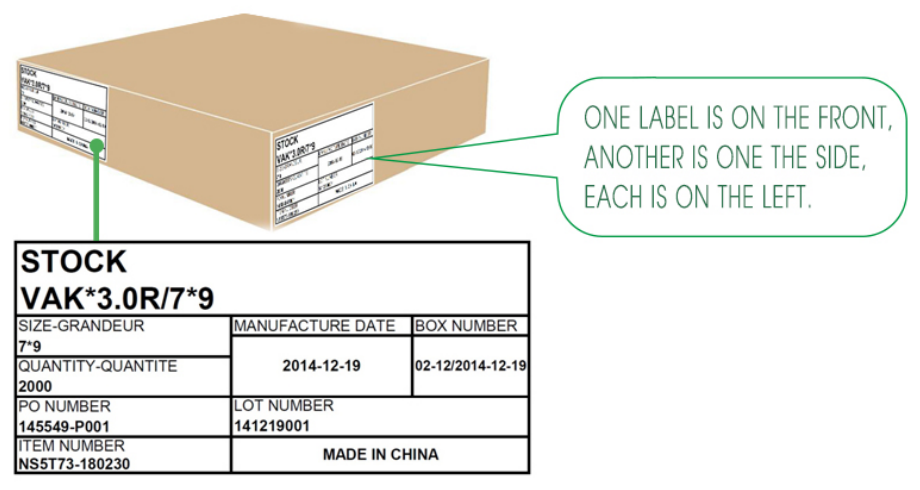

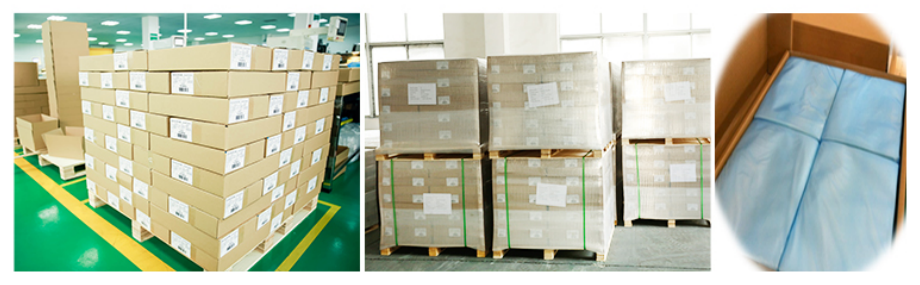

PACKAGING
Pallet Corner boards are added to strengthen box's corners, preventing pallet from damage
More pallet wraps at bottom can make pallet more solid, forbiding contamination
Wood boards are used for clarifying each size and making pallet stronger
All custom packaging is available
CONTACT US
Nice Lee
GreenPak | Green Packaging Material(Jiangyin) Co.,Ltd | International Trade Department
Email: nice.lee@greenpak.com.cn | WhatsApp/Wechat: +86-18352579868
APPLICATION
GreenPak 2 sides or 3 sides seal vacuum bags are engineered using 7 layers or 9 layers multi-layer coextruded films by using combinations of Nylon (PA) and Polythene (PE) and EVOH. | ![]() | |
GreenPak pouches are available in various sizes, having great strength and high clarity, and providing additional protection against oxygen & moisture. | ||
Fresh Meat | Bread | |
Fish | Sauces and Soups | |
Poultry | Processed Produce | |
Sausages and Cured Meats | Boil in the Bag and Pasteurization | |
Cooked Meats | Ready Meals | |
Cheese | Non Food |
TEMPERATURE
GreenPak vacuum pouch with a wide range of temperature resistance.
lt can meet your requirement of four process for the preservation of food stuff.
Three specific solution: Higher temperature, low temperature and freeze.
HIGH BARRIER
Transparency, good gloss
The polarity is strong, the printing ink adhesion is good, the printing effect is beautiful
Oil resistance, organic resistance, good solvent
It has excellent gas barrier properties, especially with very low oxygen permeability
It has a good aroma retention
Certifications
This production has got the certificate of ISO9001, ISO14001, BRCS, SQF, SGS, FDA, CFIA, QS etc. All resins meet the FDA and EU requirement.
PACKAGING
Pallet Corner boards are added to strengthen box's corners, preventing pallet from damage
More pallet wraps at bottom can make pallet more solid, forbiding contamination
Wood boards are used for clarifying each size and making pallet stronger
All custom packaging is available
CONTACT US
Nice Lee
GreenPak | Green Packaging Material(Jiangyin) Co.,Ltd | International Trade Department
Email: nice.lee@greenpak.com.cn | WhatsApp/Wechat: +86-18352579868
SPECIFICATION
GreenVac-HB
PA/EVOH/PE Co-Extrusion Film
High Barrier Multi-layers Film
Technical Data Sheet
Test Method | Unit | 60um | 70um | 90um | 100um | 120um | 150um | 175um | Tolerance | |
Thickness | ASTM D882 | um | 60 | 70 | 90 | 100 | 120 | 150 | 175 | ± 5 % |
Weight | ASTM D882 | g/m² | 57.6 | 67.2 | 86.4 | 96.0 | 115.2 | 144.0 | 168.0 | ± 5 % |
Elongation/MD | ASTM D882 | % | 523 | 550 | 565 | 585 | 605 | 650 | 680 | ± 8 % |
Elongation/TD | ASTM D882 | % | 460 | 487 | 520 | 550 | 565 | 580 | 600 | ± 8 % |
Tensile strength/MD | ASTM D882 | Mpa | 30.5 | 31.1 | 32.5 | 33.1 | 33.5 | 33.7 | 34.2 | ± 5 |
Tensile strength/TD | ASTM D882 | Mpa | 28.9 | 29.1 | 30.2 | 30.9 | 31.3 | 31.4 | 32.5 | ± 5 |
Haze | ASTMD1003 | % | 10.00 | 11.14 | 13.90 | 14.95 | 18.47 | 22.66 | 31.15 | ± 2 % |
Corona Treatment | ASTMD1896 | Dyne/cm | 38 | 38 | 38 | 38 | 38 | 38 | 38 | ± 2 |
Clarity | ASTMD1003 | % | 91.10 | 91.10 | 90.52 | 89.57 | 88.58 | 87.26 | 86.55 | ± 5 |
COF | ASTMD1894 | 0.25 | 0.25 | 0.25 | 0.25 | 0.25 | 0.25 | 0.25 | ± 0.5 | |
O2TR* | ASTMD3985 | cm³/m².d.bar @65%RH&23℃ | 2.7 | 2.3 | 1.8 | 1.6 | 1.3 | 1.0 | 0.9 | ± 10 % |
WVTR | ASTMD1249 | g/m².d | 5.0 | 5.0 | 4.0 | 4.0 | 3.0 | 2.0 | 1.0 | ± 10 % |
Sealing strength | ASTMD2029 | N/15mm | 22.2 | 25.1 | 30.6 | 33.2 | 41.1 | 50.7 | 64.9 | ± 2 |
Mark: " * " OTR is just for PA/PE Middle Barrier products. For EVOH/PA/PE high barrier products, please contact your sales manager for detail information.
GreenVac Series Options | Eco | Pro | HBR | HTR | SOV | HPR | ||
Thickness(um) | From | 50 | 60 | 60 | 60 | 70 | 175 | |
To | 65 | 125 | 125 | 150 | 125 | 200 | ||
OTR | +++ | ++++ | +++++ | ++++ | ++++ | ++++ | ||
WVTR | +++++ | +++++ | +++++ | +++++ | +++++ | +++++ | ||
Transparency | +++ | ++++ | ++++ | +++++ | ++++ | +++ | ||
Gloss | +++ | ++++ | ++++ | +++++ | ++++ | +++ | ||
Temperature Resistance | +++ | ++++ | ++++ | ++++ | +++++ | ++++ | ||
Puncture Resistance | +++ | ++++ | ++++ | ++++ | ++++ | +++++ | ||
Seal Strength | +++++ | +++++ | +++++ | +++++ | +++++ | +++++ | ||
Physical Property | +++ | ++++ | ++++ | ++++ | ++++ | +++++ |
Contact Us
Nice Lee
GreenPak | Green Packaging Material(Jiangyin) Co.,Ltd | International Trade Department
Email: nice.lee@greenpak.com.cn | WhatsApp/Wechat: +86-18352579868
SPECIFICATION
GreenVac-HB
PA/EVOH/PE Co-Extrusion Film
High Barrier Multi-layers Film
Technical Data Sheet
Test Method | Unit | 60um | 70um | 90um | 100um | 120um | 150um | 175um | Tolerance | |
Thickness | ASTM D882 | um | 60 | 70 | 90 | 100 | 120 | 150 | 175 | ± 5 % |
Weight | ASTM D882 | g/m² | 57.6 | 67.2 | 86.4 | 96.0 | 115.2 | 144.0 | 168.0 | ± 5 % |
Elongation/MD | ASTM D882 | % | 523 | 550 | 565 | 585 | 605 | 650 | 680 | ± 8 % |
Elongation/TD | ASTM D882 | % | 460 | 487 | 520 | 550 | 565 | 580 | 600 | ± 8 % |
Tensile strength/MD | ASTM D882 | Mpa | 30.5 | 31.1 | 32.5 | 33.1 | 33.5 | 33.7 | 34.2 | ± 5 |
Tensile strength/TD | ASTM D882 | Mpa | 28.9 | 29.1 | 30.2 | 30.9 | 31.3 | 31.4 | 32.5 | ± 5 |
Haze | ASTMD1003 | % | 10.00 | 11.14 | 13.90 | 14.95 | 18.47 | 22.66 | 31.15 | ± 2 % |
Corona Treatment | ASTMD1896 | Dyne/cm | 38 | 38 | 38 | 38 | 38 | 38 | 38 | ± 2 |
Clarity | ASTMD1003 | % | 91.10 | 91.10 | 90.52 | 89.57 | 88.58 | 87.26 | 86.55 | ± 5 |
COF | ASTMD1894 | 0.25 | 0.25 | 0.25 | 0.25 | 0.25 | 0.25 | 0.25 | ± 0.5 | |
O2TR* | ASTMD3985 | cm³/m².d.bar @65%RH&23℃ | 2.7 | 2.3 | 1.8 | 1.6 | 1.3 | 1.0 | 0.9 | ± 10 % |
WVTR | ASTMD1249 | g/m².d | 5.0 | 5.0 | 4.0 | 4.0 | 3.0 | 2.0 | 1.0 | ± 10 % |
Sealing strength | ASTMD2029 | N/15mm | 22.2 | 25.1 | 30.6 | 33.2 | 41.1 | 50.7 | 64.9 | ± 2 |
Mark: " * " OTR is just for PA/PE Middle Barrier products. For EVOH/PA/PE high barrier products, please contact your sales manager for detail information.
GreenVac Series Options | Eco | Pro | HBR | HTR | SOV | HPR | ||
Thickness(um) | From | 50 | 60 | 60 | 60 | 70 | 175 | |
To | 65 | 125 | 125 | 150 | 125 | 200 | ||
OTR | +++ | ++++ | +++++ | ++++ | ++++ | ++++ | ||
WVTR | +++++ | +++++ | +++++ | +++++ | +++++ | +++++ | ||
Transparency | +++ | ++++ | ++++ | +++++ | ++++ | +++ | ||
Gloss | +++ | ++++ | ++++ | +++++ | ++++ | +++ | ||
Temperature Resistance | +++ | ++++ | ++++ | ++++ | +++++ | ++++ | ||
Puncture Resistance | +++ | ++++ | ++++ | ++++ | ++++ | +++++ | ||
Seal Strength | +++++ | +++++ | +++++ | +++++ | +++++ | +++++ | ||
Physical Property | +++ | ++++ | ++++ | ++++ | ++++ | +++++ |
Contact Us
Nice Lee
GreenPak | Green Packaging Material(Jiangyin) Co.,Ltd | International Trade Department
Email: nice.lee@greenpak.com.cn | WhatsApp/Wechat: +86-18352579868
We are professional food packaging manufacture, we can offer vairous certifiates for marketing.
BRC certificate | SQF Certificate |
![]() | ![]() |
If you want to know more certificates information, pls contact with us:
Contact us
Nice Lee
GreenPak | Green Packaging Material(Jiangyin) Co.,Ltd | International Trade Department
Email: nice.lee@greenpak.com.cn | WhatsApp/Wechat: +86-18352579868
We are professional food packaging manufacture, we can offer vairous certifiates for marketing.
BRC certificate | SQF Certificate |
![]() | ![]() |
If you want to know more certificates information, pls contact with us:
Contact us
Nice Lee
GreenPak | Green Packaging Material(Jiangyin) Co.,Ltd | International Trade Department
Email: nice.lee@greenpak.com.cn | WhatsApp/Wechat: +86-18352579868
