PET Laminated PA/EVOH/PE Lidding Film for Fresh Fruits

PET Laminated PA/EVOH/PE Lidding Film for Fresh Fruits

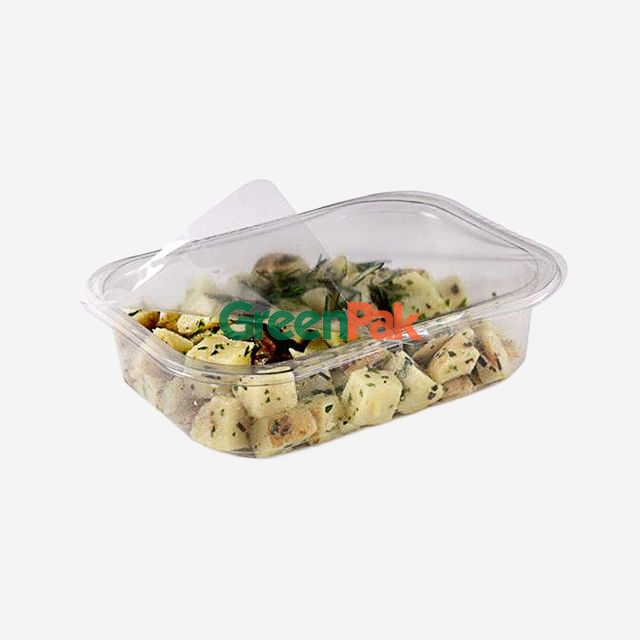

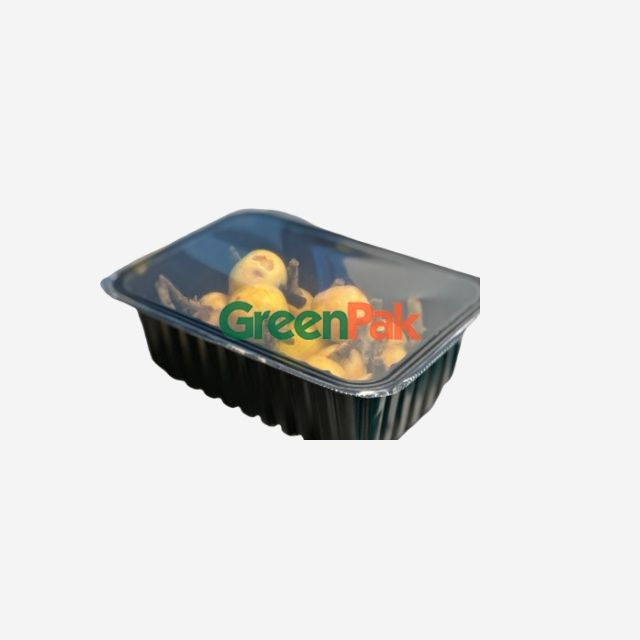

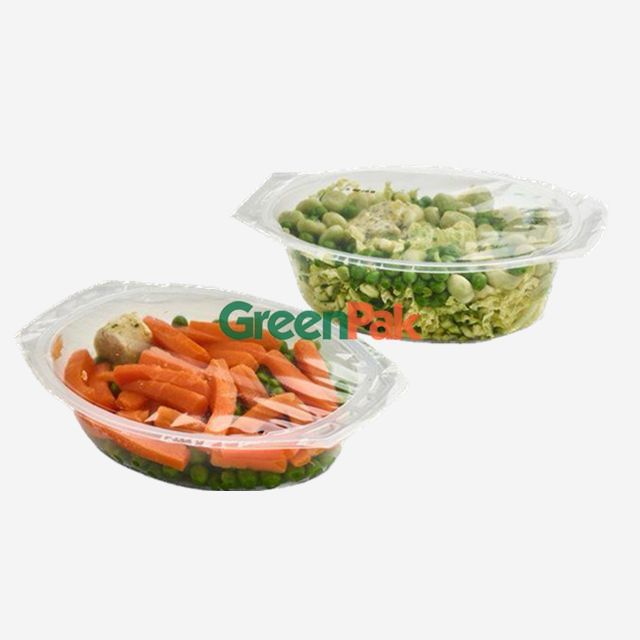

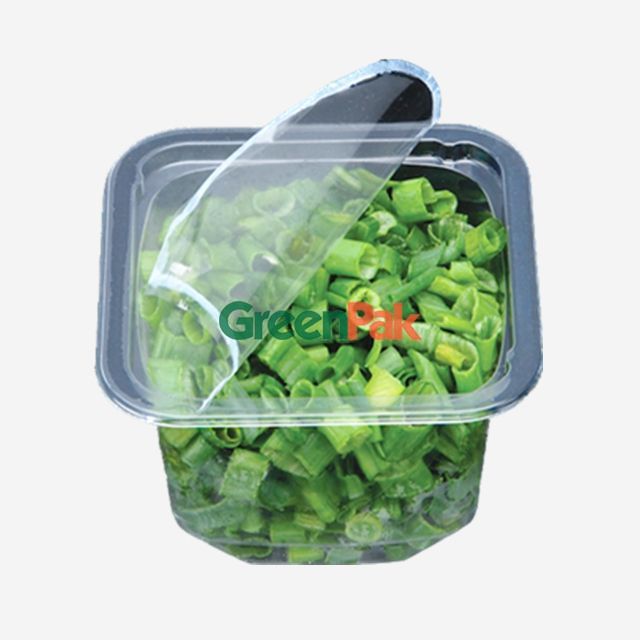

Our PET Laminated PA/PE Lidding Film is designed specifically for fresh fruits and vegetables, offering superior sealing performance and freshness protection. This high-quality film provides an airtight seal that helps extend shelf life and preserve the natural quality of your produce. Perfect for use in food packaging, it ensures that your fruits and vegetables stay fresh, secure, and free from contamination.

Contact blew for more information:

Email: nice.lee@greenpak.com.cn

Whatsapp: +86-18352579868


Availability:



Inquire Add to Basket

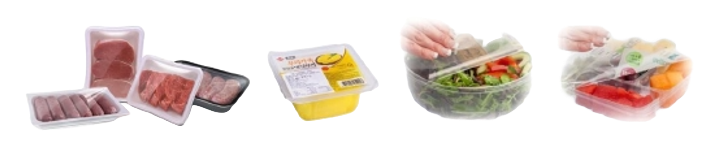

lidding film

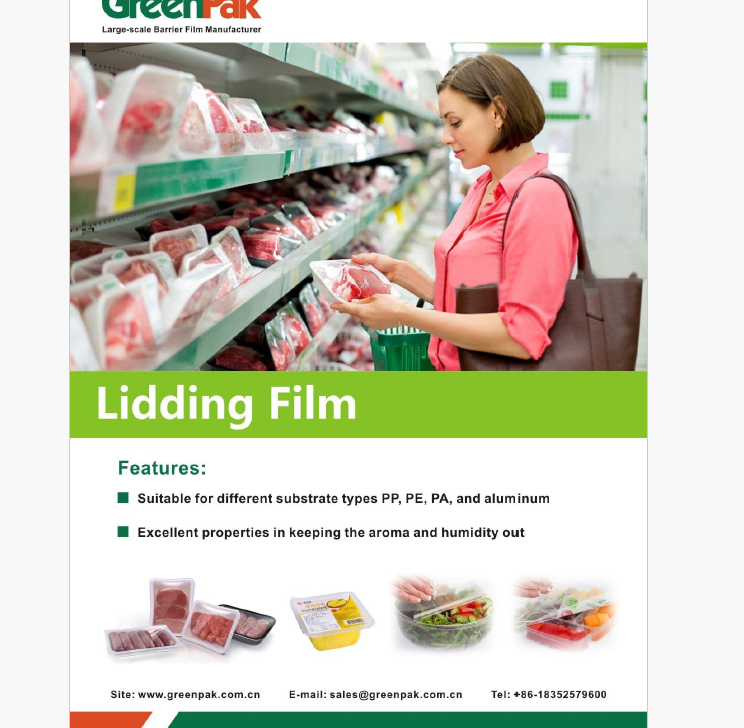

Lidding Film

Features:

Suitable for different substrate types PP, PE, PA, and aluminum
Excellent properties in keeping the aroma and humidity out

lidding film

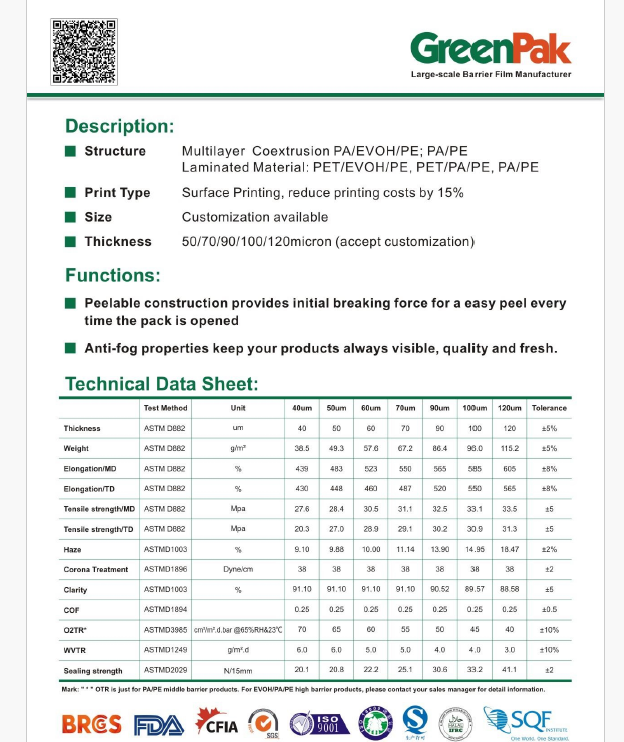

Description:

Structure	Multilayer Coextrusion PA/EVOH/PE; PA/PE Laminated Material: PET/EVOH/PE, PET/PA/PE, PA/PE
Print Type	Surface Printing, reduce printing costs by 15%
Size	Customization available
Thickness	50/70/90/100/120 micron (accept customization)

Functions:

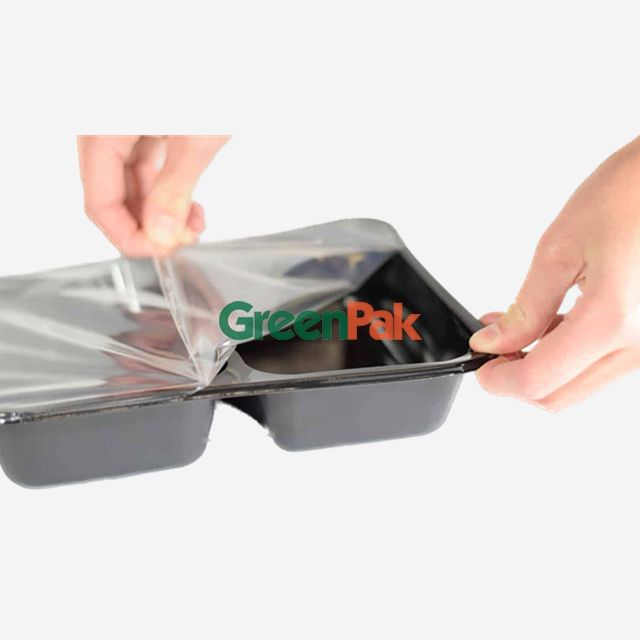

Peelable construction provides initial breaking force for a easy peel everytime the pack is opened
Anti-fog properties keep your products always visible, good-quality and fresh.

Technical Data Sheet:

	Test Method	Unit	40um	50um	60um	70um	90um	100um	120um	Tolerance
Thickness	ASTM D882	um	40	50	60	70	90	100	120	± 5%
Weight	ASTM D882	g/㎡	38.5	49.3	57.6	67.2	86.4	98.0	115.2	± 5%
Elongation/MD	ASTM D882	%	439	483	523	478	520	585	605	± 8%
Elongation/TD	ASTM D882	%	430	448	460	550	565	550	565	± 8%
Tensile strength/MD	ASTM D882	Mpa	27.6	28.4	30.5	31.1	32.5	33.1	33.5	± 5
Tensile strength/TD	ASTM D882	Mpa	20.3	27.0	28.9	29.1	30.2	30.9	31.3	± 5
Haze	ASTMD1003	%	9.10	9.88	10.00	8.00	8.00	14.95	18.47	± 2%
Corona Treatment	ASTMD1896	Dyne/cm	38	38	38	38	38	38	38	± 2
Clarity	ASTMD1003	%	91.10	91.10	91.10	91.10	90.52	89.57	88.58	± 5
COF	ASTMD1894		0.25	0.25	0.25	0.25	0.25	0.25	0.25	± 0.5
O2TR*	ASTMD3985	cm³/㎡.d.bar @65%RH&23℃	70	65	60	55	50	45	40	± 10%
WVTR	ASTMD1249	g/㎡.d	6.0	6.0	5.0	5.0	4.0	4.0	3.0	± 10%
Sealing strength	ASTMD2029	N/15mm	20.1	20.8	22.2	25.1	30.6	33.2	41.1	± 2

Mark: "*" OTR just for PA/PE middle barrier products. For EVOH/PA/PE high barrier products, please contact us for detail information.

Contact Us:

Nice Lee

GreenPak | Green Packaging Material(Jiangyin) Co.,Ltd | International Trade Department

Email: nice.lee@greenpak.com.cn | WhatsApp/Wechat: +86-18352579868

SPECIFICATION

GreenVac-HB

PA/EVOH/PE Co-Extrusion Film

High Barrier Multi-layers Film

Technical Data Sheet

	Test Method	Unit	60um	70um	90um	100um	120um	150um	175um	Tolerance
Thickness	ASTM D882	um	60	70	90	100	120	150	175	± 5 %
Weight	ASTM D882	g/m²	57.6	67.2	86.4	96.0	115.2	144.0	168.0	± 5 %
Elongation/MD	ASTM D882	%	523	550	565	585	605	650	680	± 8 %
Elongation/TD	ASTM D882	%	460	487	520	550	565	580	600	± 8 %
Tensile strength/MD	ASTM D882	Mpa	30.5	31.1	32.5	33.1	33.5	33.7	34.2	± 5
Tensile strength/TD	ASTM D882	Mpa	28.9	29.1	30.2	30.9	31.3	31.4	32.5	± 5
Haze	ASTMD1003	%	10.00	11.14	13.90	14.95	18.47	22.66	31.15	± 2 %
Corona Treatment	ASTMD1896	Dyne/cm	38	38	38	38	38	38	38	± 2
Clarity	ASTMD1003	%	91.10	91.10	90.52	89.57	88.58	87.26	86.55	± 5
COF	ASTMD1894		0.25	0.25	0.25	0.25	0.25	0.25	0.25	± 0.5
O2TR*	ASTMD3985	cm³/m².d.bar @65%RH&23℃	2.7	2.3	1.8	1.6	1.3	1.0	0.9	± 10 %
WVTR	ASTMD1249	g/m².d	5.0	5.0	4.0	4.0	3.0	2.0	1.0	± 10 %
Sealing strength	ASTMD2029	N/15mm	22.2	25.1	30.6	33.2	41.1	50.7	64.9	± 2

Mark: " * " OTR is just for PA/PE Middle Barrier products. For EVOH/PA/PE high barrier products, please contact us for detail information.

GreenVac Series Options			Eco	Pro	HBR	HTR	SOV	HPR
	Thickness(um)	From	50	60	60	60	70	175
		To	65	125	125	150	125	200
	OTR		+++	++++	+++++	++++	++++	++++
	WVTR		+++++	+++++	+++++	+++++	+++++	+++++
	Transparency		+++	++++	++++	+++++	++++	+++
	Gloss		+++	++++	++++	+++++	++++	+++
	Temperature Resistance		+++	++++	++++	++++	+++++	++++
	Puncture Resistance		+++	++++	++++	++++	++++	+++++
	Seal Strength		+++++	+++++	+++++	+++++	+++++	+++++
	Physical Property		+++	++++	++++	++++	++++	+++++

Product Feature

The film has the feature of high barrier, clear, which is developed and produced by GreenPak for vacuum bags.

Application

Long term storage of dry foods: Nuts, cereals, cheese, smoked fish, crisps, cured meats.
Short term storage of fresh foods: Vegetables, meats, liquid i.e. soups.
Frozen foods: Vacuum pouches prevent freezer burn by shielding food from exposure to the cold, dry air.

Certifications

This production has got the certificate of ISO9001, ISO14001, BRCS, SQF, SGS, FDA, CFIA, QS etc. All resins meet the FDA and EU requirement.
