Discover our Premium PA/PE Co-Extruded Embossed Vacuum Bags with a unique diamond pattern, designed for superior food preservation.

Perfect for use with home vacuum sealers, these bags offer a reliable solution to extend the shelf life of your food, prevent freezer burn, and keep your items fresh longer.

Made with durable materials, our vacuum bags are ideal for storing meats, vegetables, and other food items, providing an airtight seal that locks in freshness. Whether you're prepping meals or storing leftovers, our vacuum bags are a must-have for any kitchen.

Contact blew for more information:

Email: nice.lee@greenpak.com.cn

Whatsapp: +86-18352579868


Availability:



Inquire Add to Basket

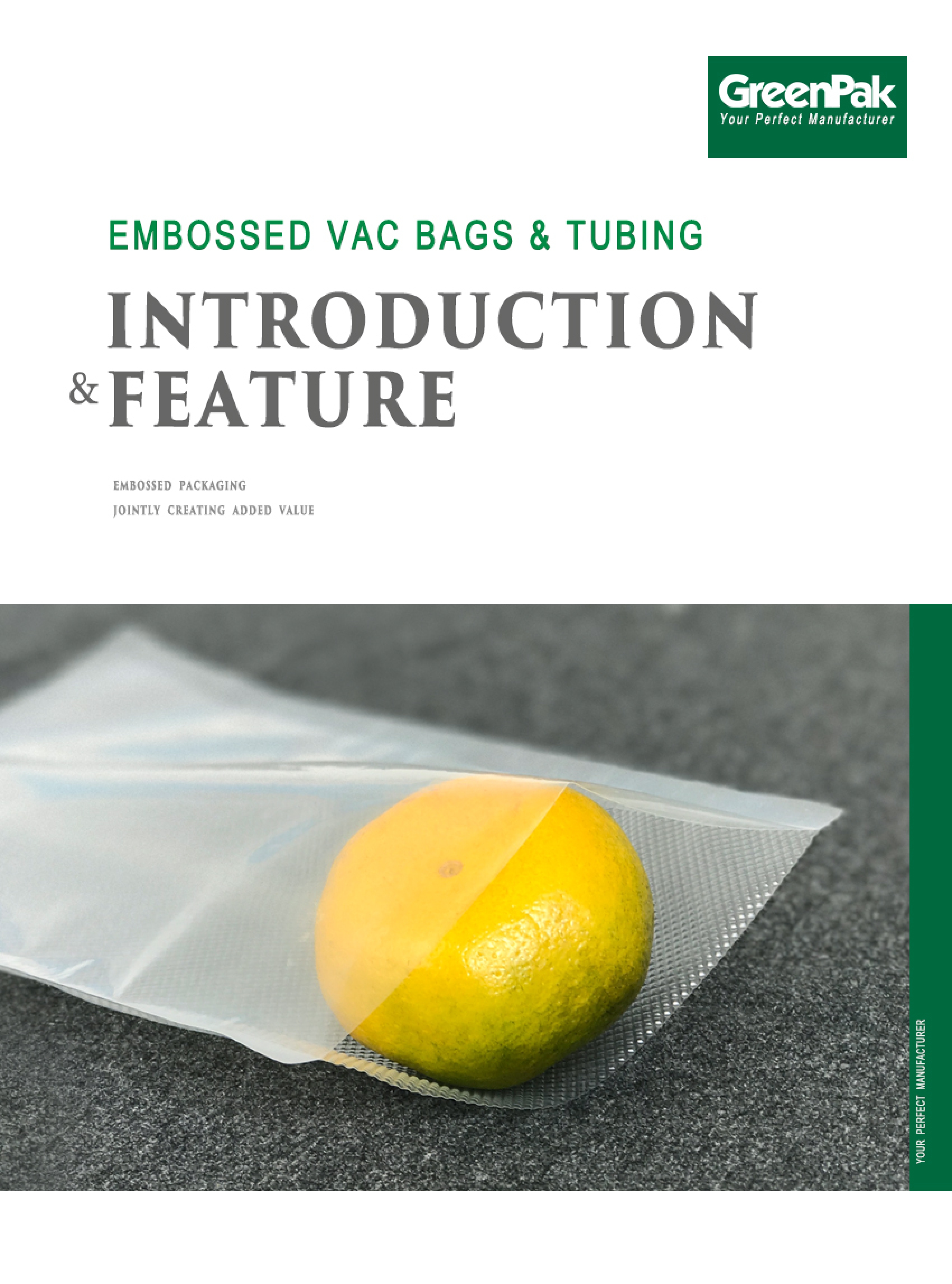

INTRODUCTION & FEATURE

EMBOSSED VAC BAGS & TUBING

EMBOSSED PACKING

JOINTLY CREATING ADDED VALUE

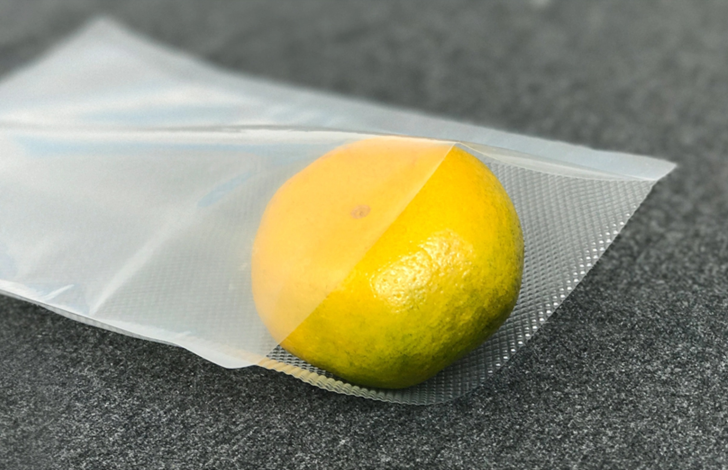

embossed vac bags & tubing

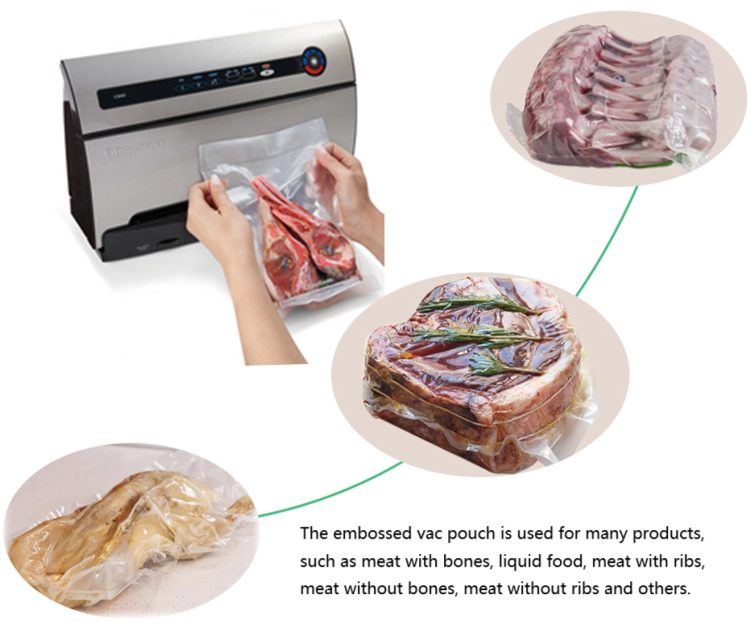

application

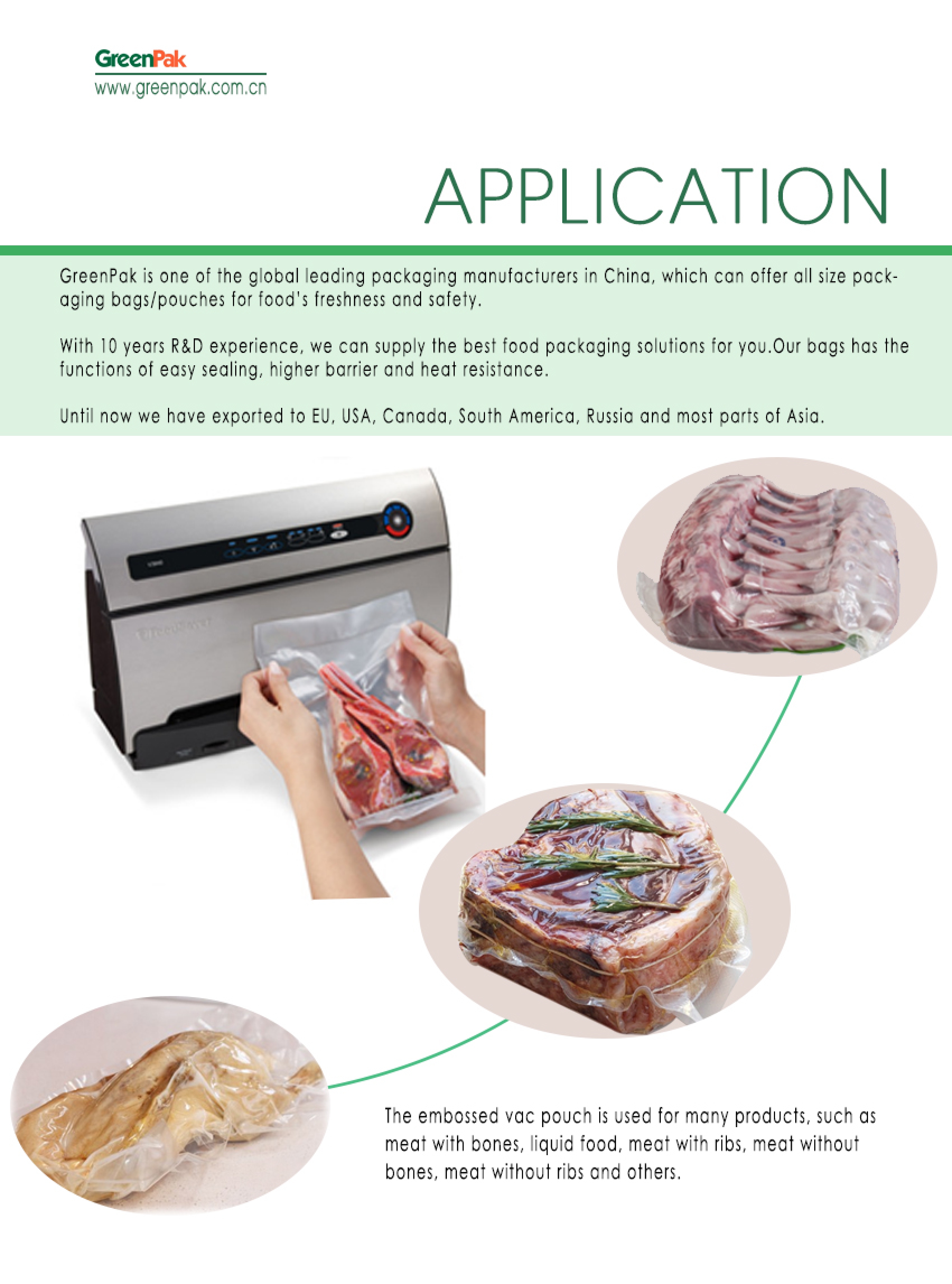

APPLICATION

GreenPak is one of the global leading packaging manufacturers in China, which can offer all size packaging bags/pouches for food's freshness and safety.

With 10 years R&D experience, we can supply the best food packaging solutions for you. Qur bags has the functions of easy sealing, higher barrier and heat resistance.

Until now we have exported to EU, USA, Canada, South America, Russia and most parts of Asia.

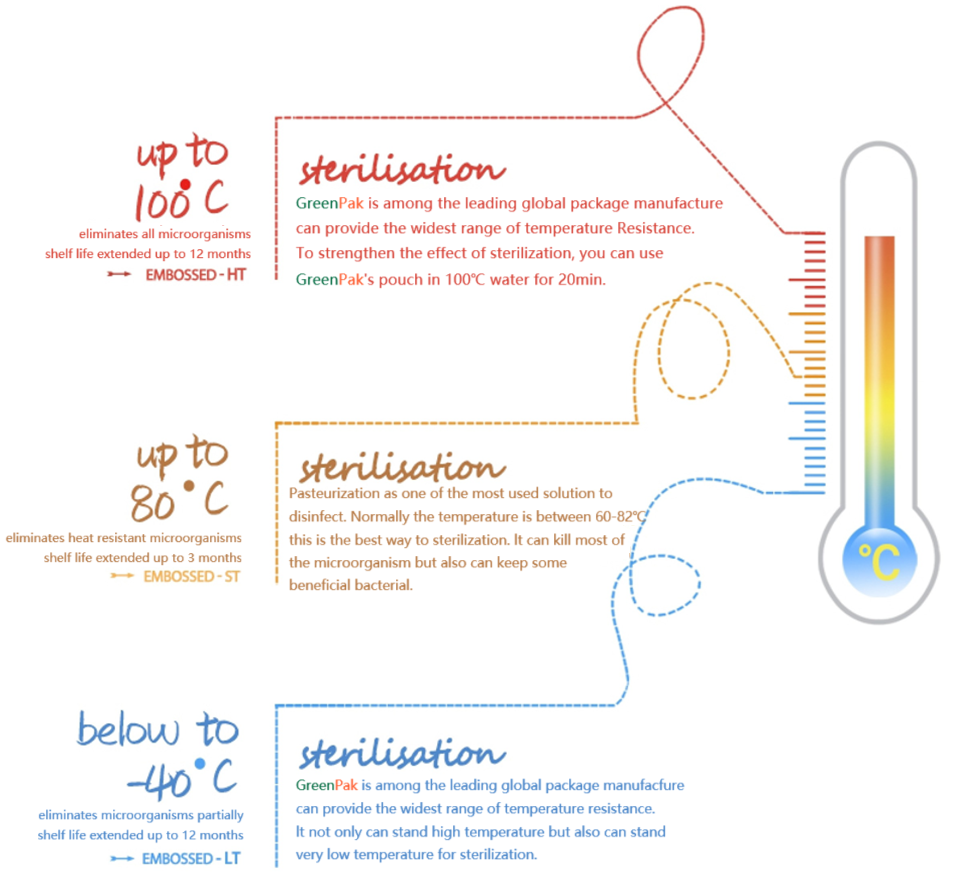

TEMPERATURE

GreenPak's embossed vacuum pouch with a wide range of temperature resistance.

lt can meet your requirement of three process for the preservation of foodstuff.

Three specific solution : Hightemperature, low temperature and freeze

temperature

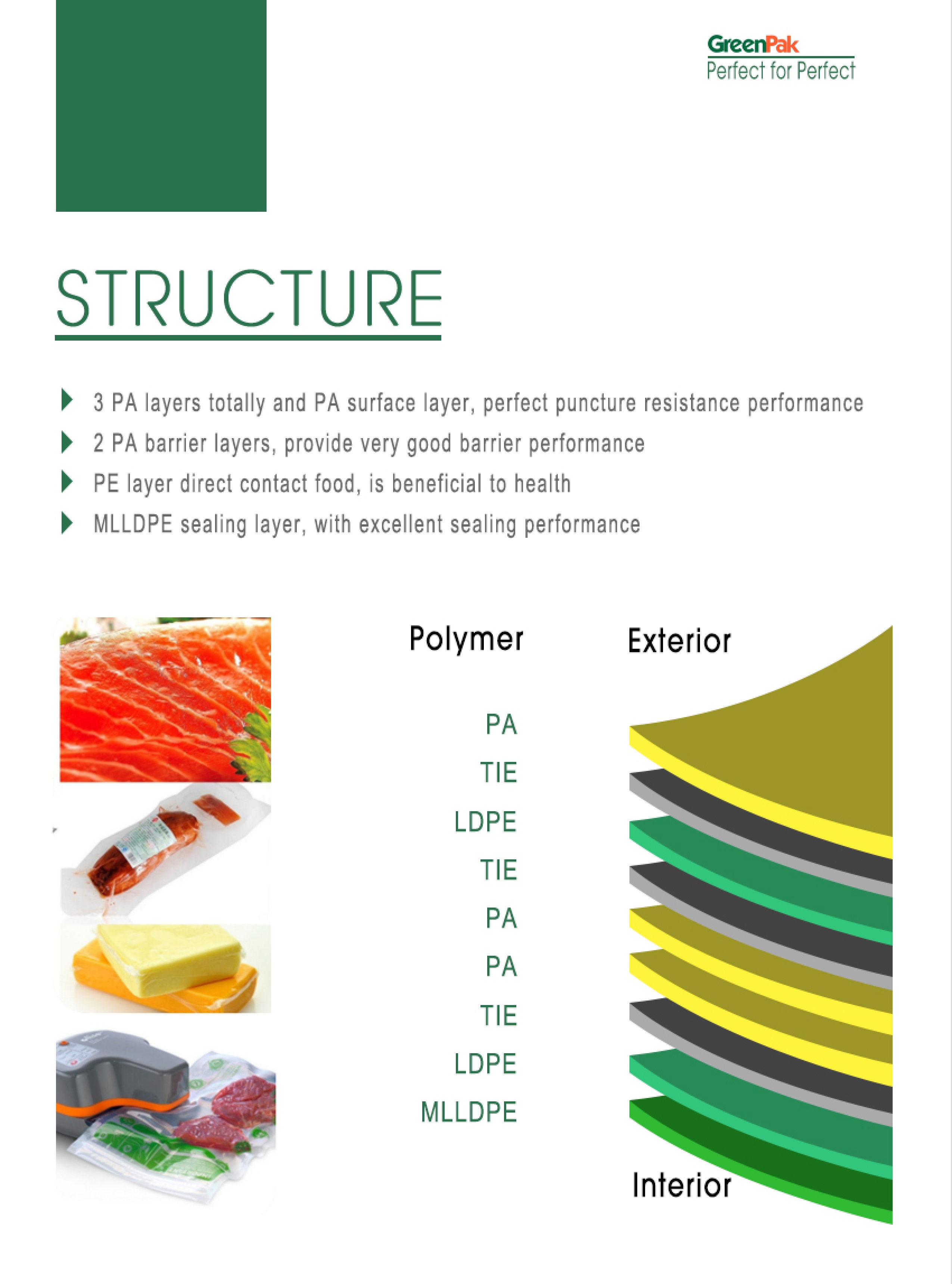

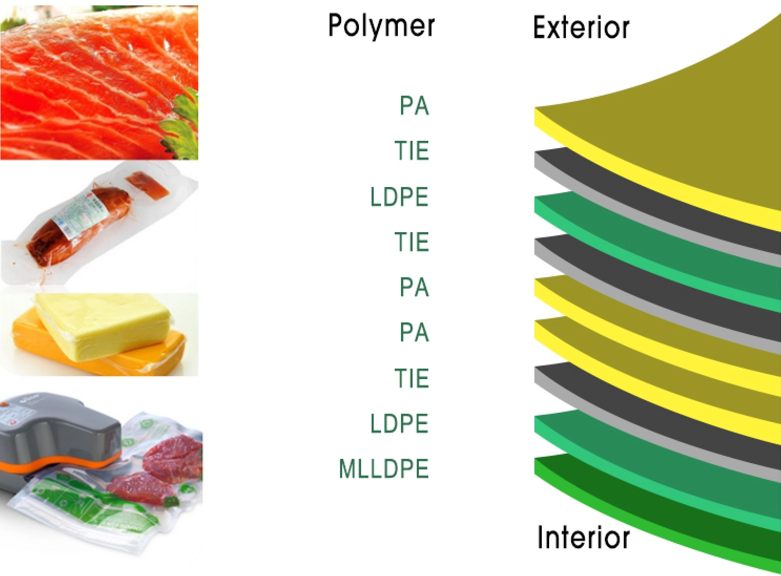

STRUCTURE

3 PA layers totally and PA surface layer, perfect puncture resistance performance
2 PA barrier layers, providing very good barrier performance
PE layer directly contacting food is beneficial to health
MLLDPE sealing layer, with excellent sealing performance

surface

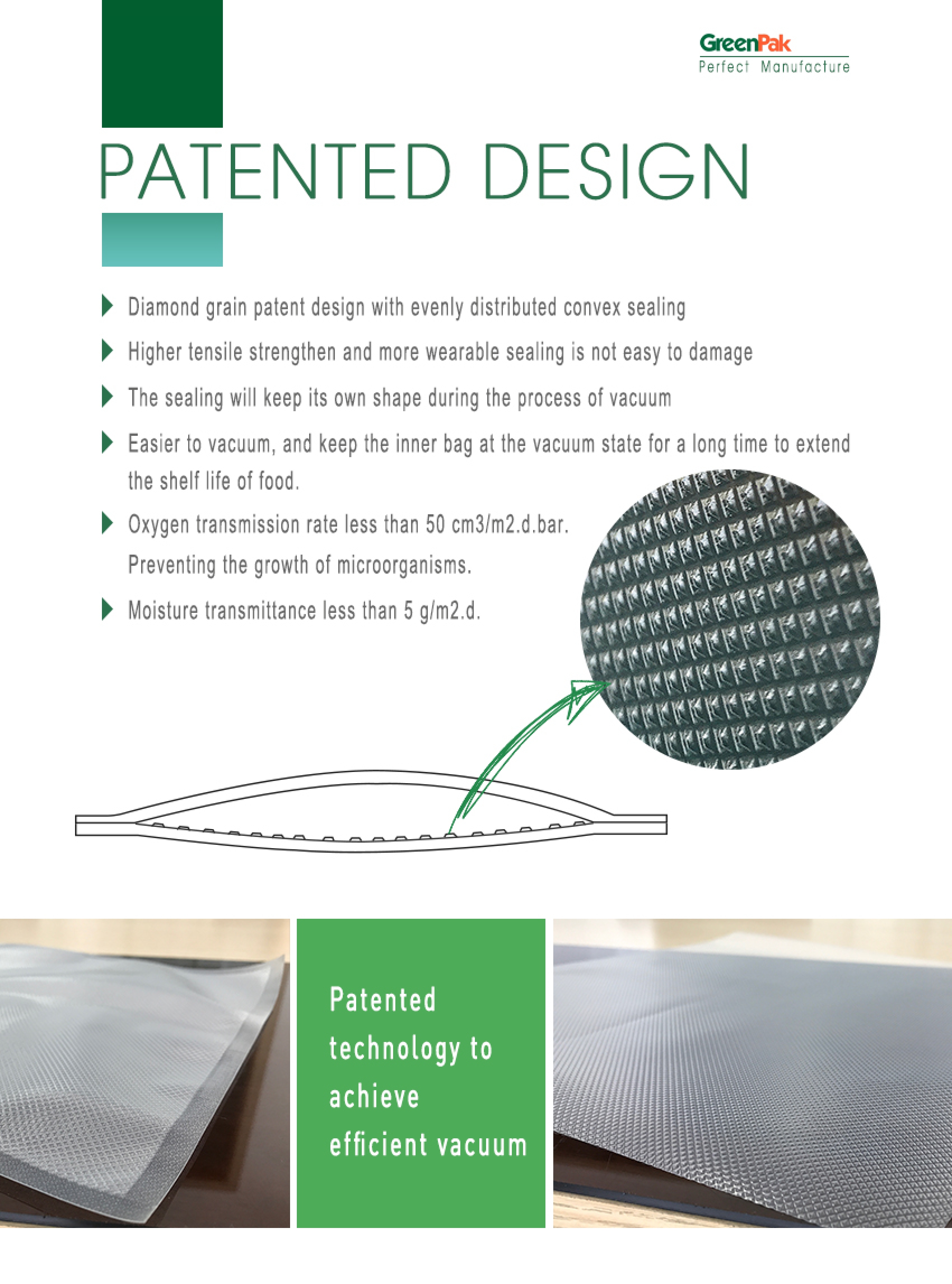

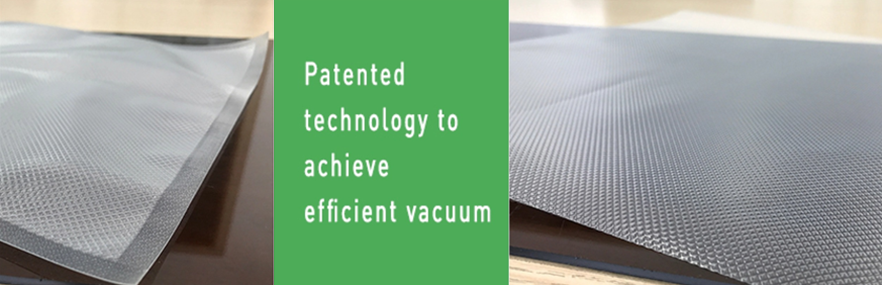

PATENTED DESIGN

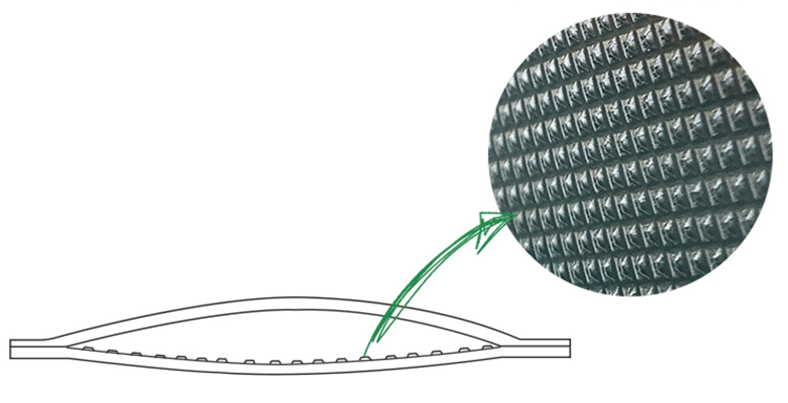

- Diamond grain patent design with evenly distributed convex sealing

- Higher tensile strengthen and more wearable sealing is not easy to damage

- The sealing will keep its own shape during the process of vacuum

- Easier to vacuum, and keep the inner bag at the vacuum state for a long time to extend the shelf life of food

- Oxygen transmission rate less than 50 cm³/㎡.d.bar.

- Preventing the growth of microorganisms.

- Moisture transmitance less than 5 g/㎡.d.

patented design

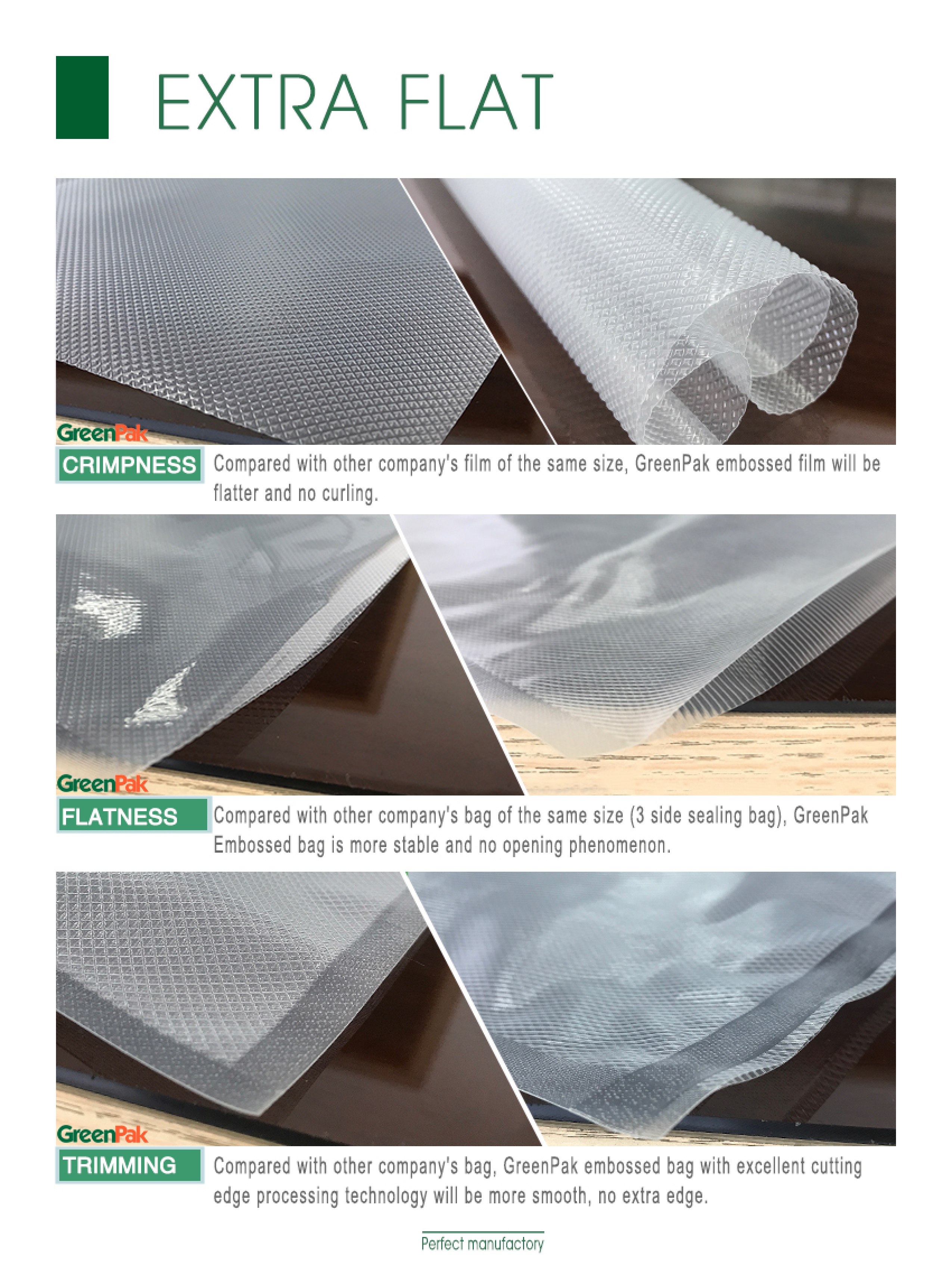

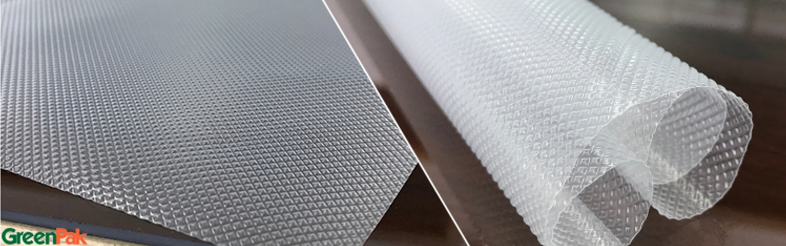

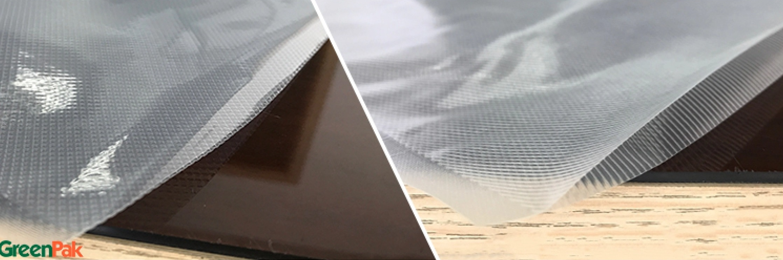

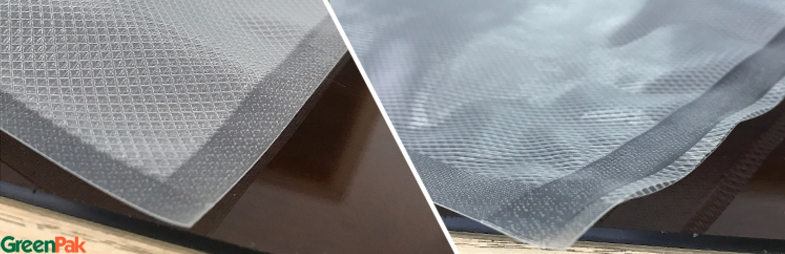

EXTRA FLAT


CRIMPNESS	Compared with other company's film of the same size, GreenPak embossed film will be flatter and no curling.

FLATNESS	Compared with other company's bag of the same size (3 side sealing bag), GreenPak Embossed bag is more stable and no opening phenomenon.

TRIMMING	Compared with other company's bag, GreenPak embossed bag with excellent cutting edge processing technology will be more smooth, no extra edge.

CONTACT US

Nice Lee

GreenPak | Green Packaging Material(Jiangyin) Co.,Ltd | International Trade Department

Email: nice.lee@greenpak.com.cn | WhatsApp/Wechat: +86-18352579868

SPECIFICATION

GreenVac-HB

PA/EVOH/PE Co-Extrusion Film

High Barrier Multi-layers film

Technical Data Sheet

	Test Method	Unit	60um	70um	90um	100um	120um	150um	175um	Tolerance
Thickness	ASTM D882	um	60	70	90	100	120	150	175	± 5 %
Weight	ASTM D882	g/m²	57.6	67.2	86.4	96.0	115.2	144.0	168.0	± 5 %
Elongation/MD	ASTM D882	%	523	550	565	585	605	650	680	± 8 %
Elongation/TD	ASTM D882	%	460	487	520	550	565	580	600	± 8 %
Tensile strength/MD	ASTM D882	Mpa	30.5	31.1	32.5	33.1	33.5	33.7	34.2	± 5
Tensile strength/TD	ASTM D882	Mpa	28.9	29.1	30.2	30.9	31.3	31.4	32.5	± 5
Haze	ASTMD1003	%	10.00	11.14	13.90	14.95	18.47	22.66	31.15	± 2 %
Corona Treatment	ASTMD1896	Dyne/cm	38	38	38	38	38	38	38	± 2
Clarity	ASTMD1003	%	91.10	91.10	90.52	89.57	88.58	87.26	86.55	± 5
COF	ASTMD1894		0.25	0.25	0.25	0.25	0.25	0.25	0.25	± 0.5
O2TR*	ASTMD3985	cm³/m².d.bar @65%RH&23℃	2.7	2.3	1.8	1.6	1.3	1.0	0.9	± 10 %
WVTR	ASTMD1249	g/m².d	5.0	5.0	4.0	4.0	3.0	2.0	1.0	± 10 %
Sealing strength	ASTMD2029	N/15mm	22.2	25.1	30.6	33.2	41.1	50.7	64.9	± 2

Mark: " * " OTR is just for PA/PE Middle Barrier products. For EVOH/PA/PE high barrier products, please contact your sales manager for detail information.

GreenVac Series Options			Eco	Pro	HBR	HTR	SOV	HPR
	Thickness(um)	From	50	60	60	60	70	175
		To	65	125	125	150	125	200
	OTR		+++	++++	+++++	++++	++++	++++
	WVTR		+++++	+++++	+++++	+++++	+++++	+++++
	Transparency		+++	++++	++++	+++++	++++	+++
	Gloss		+++	++++	++++	+++++	++++	+++
	Temperature Resistance		+++	++++	++++	++++	+++++	++++
	Puncture Resistance		+++	++++	++++	++++	++++	+++++
	Seal Strength		+++++	+++++	+++++	+++++	+++++	+++++
	Physical Property		+++	++++	++++	++++	++++	+++++

Product Feature

The film has the feature of high barrier, clear, which is developed and produced by GreenPak for vacuum bags.

Application

Long term storage of dry foods: Nuts, cereals, cheese, smoked fish, crisps, cured meats.
Short term storage of fresh foods: Vegetables, meats, liquid i.e. soups.
Frozen foods: Vacuum pouches prevent freezer burn by shielding food from exposure to the cold, dry air.

Certifications

This production has got the certificate of ISO9001, ISO14001, BRCS, SQF, SGS, FDA, CFIA, QS etc. All resins meet the FDA and EU requirement.
