Availability: | |
---|---|

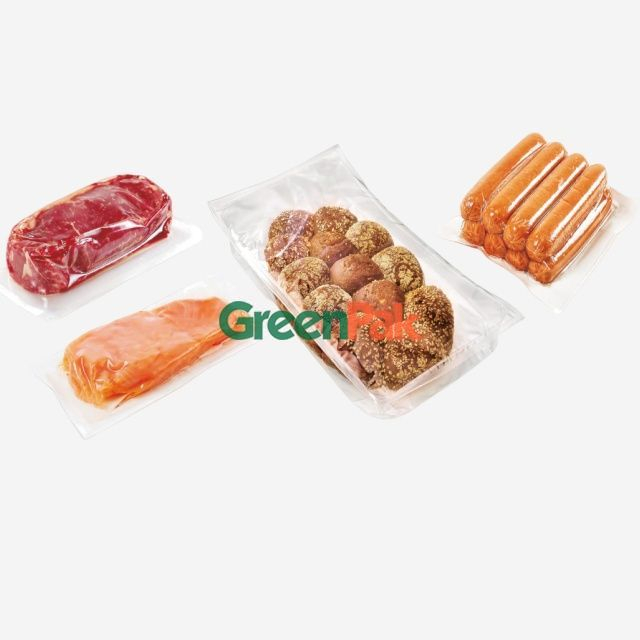

These films are perfect for packaging a wide variety of applications for low- and high-speed production, from cheese and meats to bakery items, pasta, pizza, and sandwiches.

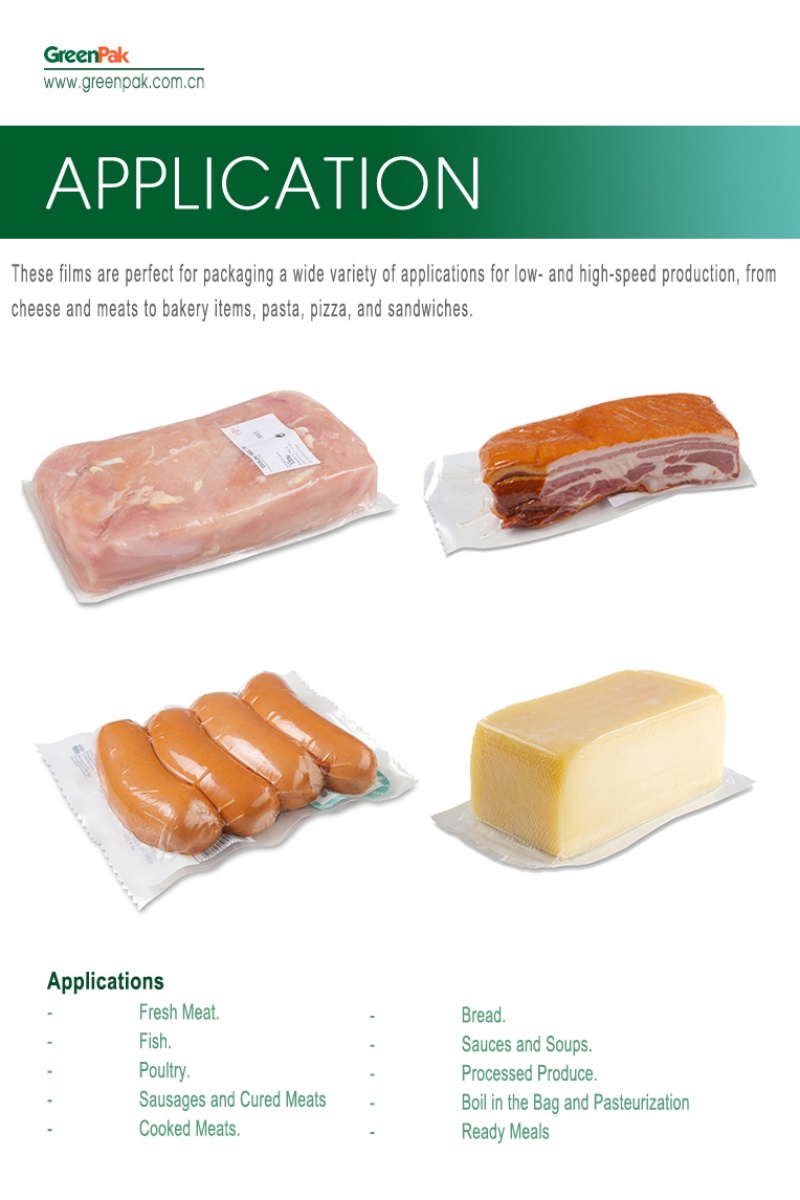

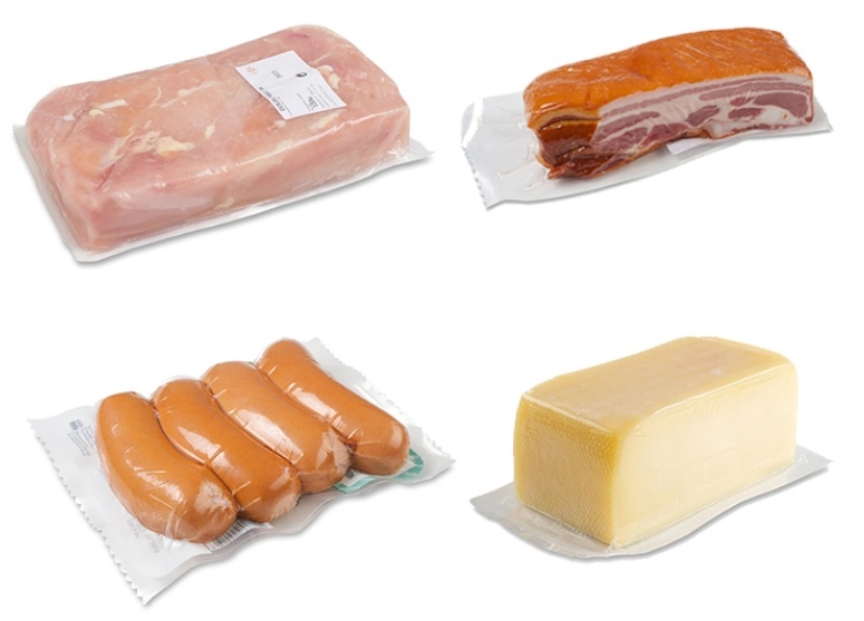

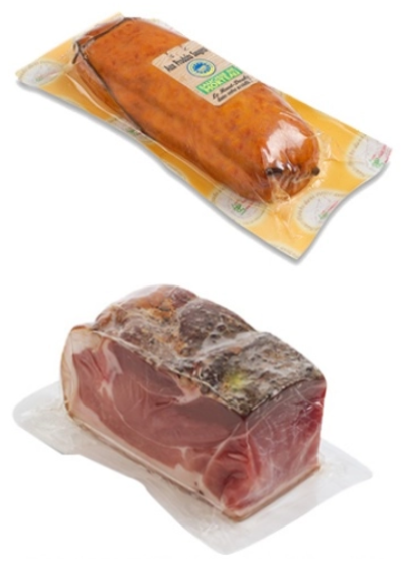

APPLICATIONS
- Fresh Meat. | - Bread. |
- Fish. | - Sauces and Soups. |
- Poultry. | - Processed Produce. |
- Sausages and Cured Meats | - Boil in the Bag and Pasteurization |
- Cooked Meats. | - Ready Meals |

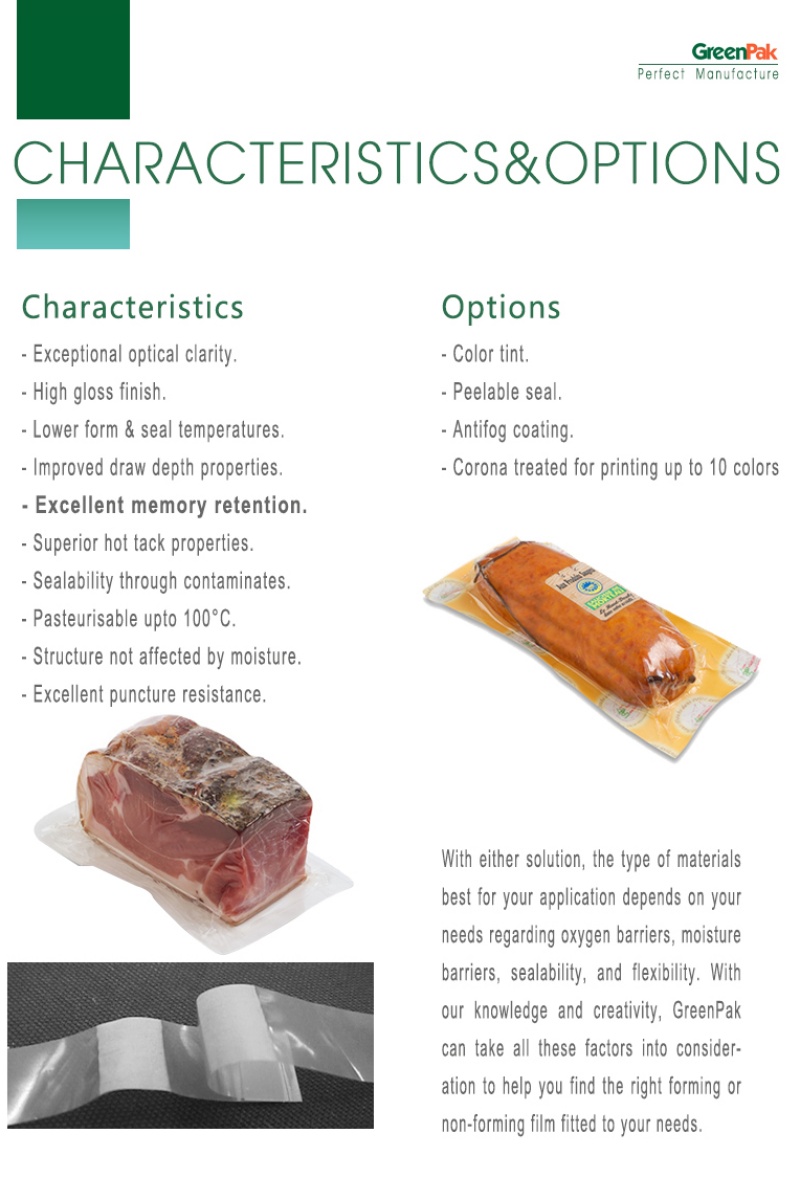

CHARACTERISTICS & OPTION
Characteristics | Options |
- Exceptional optical clarity. | - Color tint. |
- High gloss finish. | - Peelable seal. |
- Lower form & seal temperatures. | - Antifog coating. |
- lmproved draw depth properties | - Corona treated for printing up to 10 colors |
- Color tint. | ![]() |
- Peelable seal. | |
- Antifog coating. | |
- Corona treated for printing up to 10 colors | |
- Excellent memory retention. | |
- Superior hot tack properties. | |
- Sealability through contaminates. | |
- Pasteurisable upto 100°C. | |
- Structure not affected by moisture. | |
- Excellent puncture resistance | |
![]() | With either solution, the type of materials best for your application depends on your needs regarding oxygen barriers, moisture barriers, sealability, and flexibility. With our knowledge and creativity, GreenPak can take all these factors into consider-ation to help you find the right forming ornon-forming film fitted to your needs. |

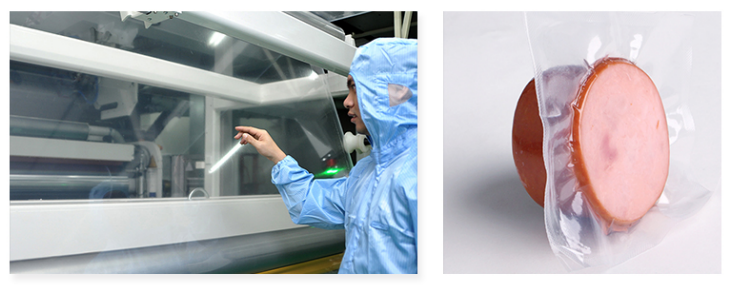

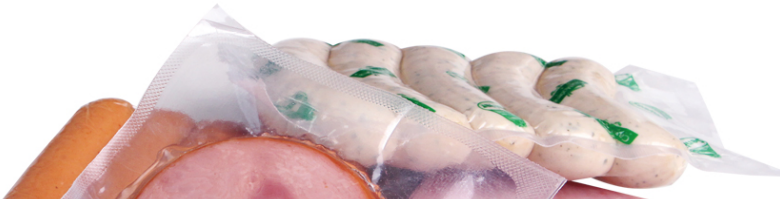

HIGH CLARITY
The films features a revolutionary multi-layer co-extrusion process with unique and innovative cooling properties allows the films to crystallize giving you perfect clarity.
With forming and non-forming films, we offer a clear solution for showcasing your product - so that it can capture a consumer's eyes. Both forming films and non-forming films make it possible to openly display a package's contents, in the arrangement you like best.
As a leading packaging resource, GreenPak offers forming and non-forming films to seal together and complete your packages.

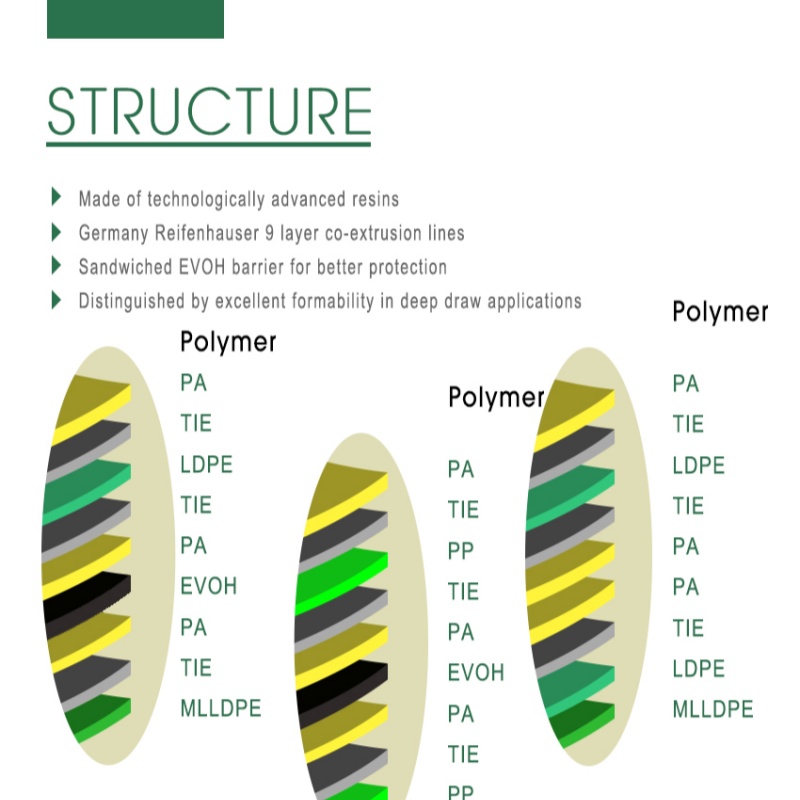

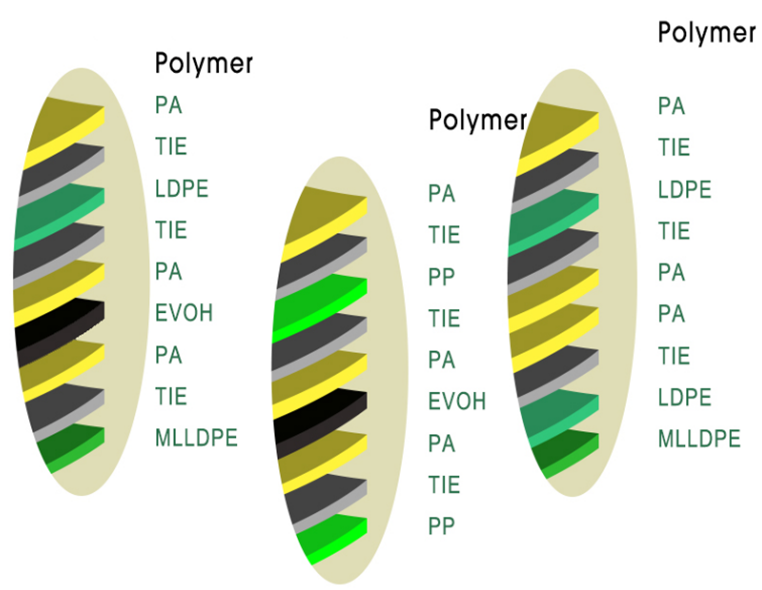

STRUCTURE
Made of technologically advanced resins
Germany Reifenhauser 9 layer co-extrusion lines
Sandwiched EVOH barrier for better protection
Distinguished by excellent formability in deep draw applications

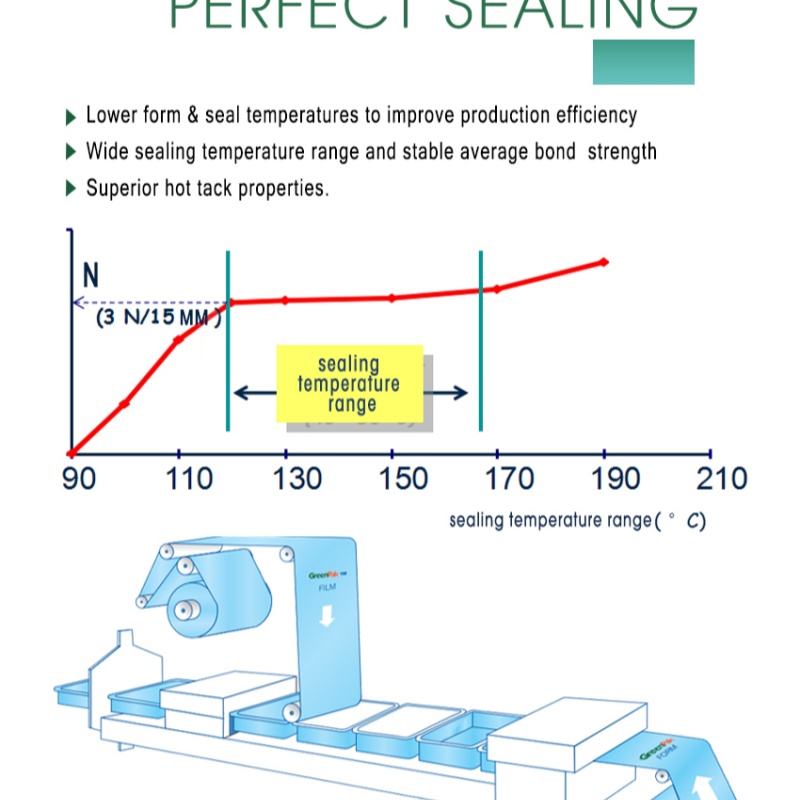

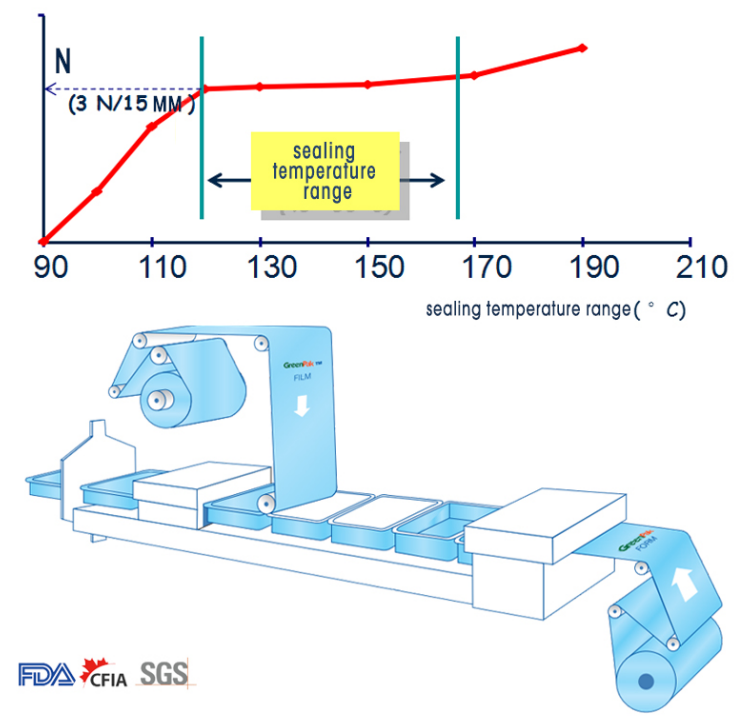

PERFECT SEALING
Lower form & seal temperatures to improve production efficiency
Wide sealing temperature range and stable average bond strength
Superior hot tack properties.

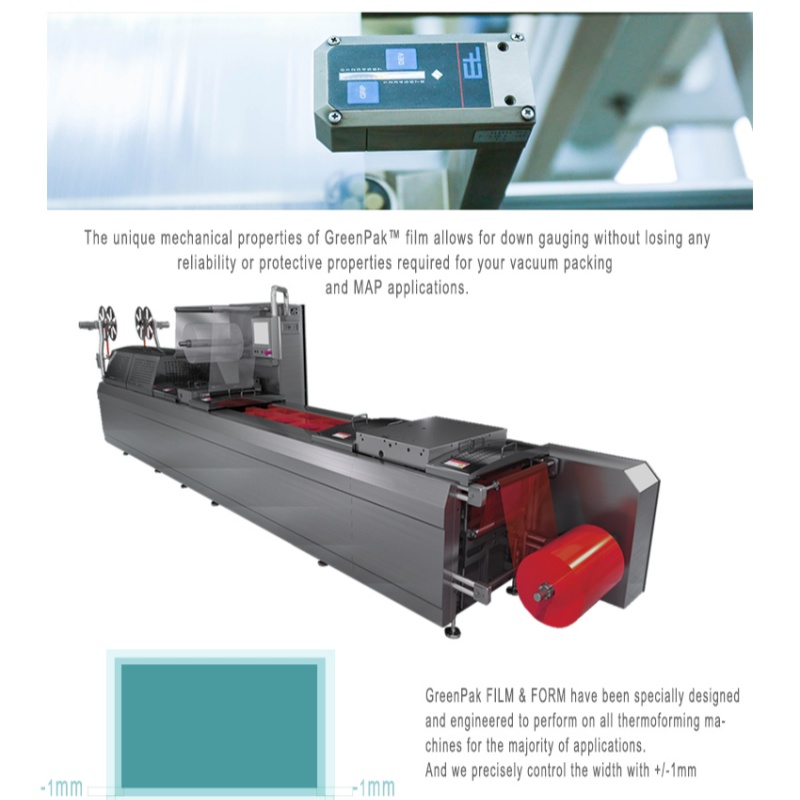

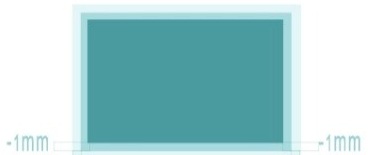

EXACT WIDTH
The unique mechanical properties of GreenPak film allows for down gauging without losing any reliability or protective properties required for your vacuum packing and MAP applications.

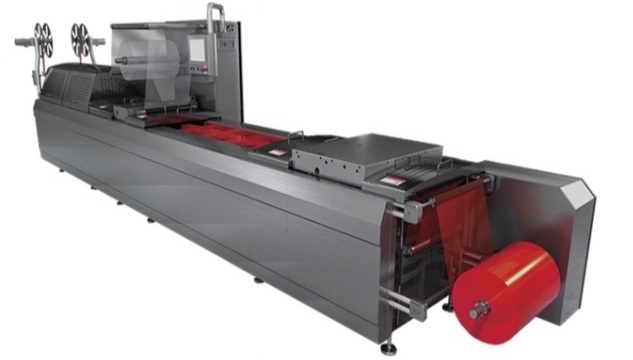

GreenPak FlLM & FORM have been specially designed and engineered to perform on all thermoforming machines for the majority of applications.
And we precisely control the width with +/-1mm
Contact us
Nice Lee
GreenPak | Green Packaging Material(Jiangyin) Co.,Ltd | International Trade Department
Email: nice.lee@greenpak.com.cn | WhatsApp/Wechat: +86-18352579868
These films are perfect for packaging a wide variety of applications for low- and high-speed production, from cheese and meats to bakery items, pasta, pizza, and sandwiches.
APPLICATIONS
- Fresh Meat. | - Bread. |
- Fish. | - Sauces and Soups. |
- Poultry. | - Processed Produce. |
- Sausages and Cured Meats | - Boil in the Bag and Pasteurization |
- Cooked Meats. | - Ready Meals |
CHARACTERISTICS & OPTION
Characteristics | Options |
- Exceptional optical clarity. | - Color tint. |
- High gloss finish. | - Peelable seal. |
- Lower form & seal temperatures. | - Antifog coating. |
- lmproved draw depth properties | - Corona treated for printing up to 10 colors |
- Color tint. | ![]() |
- Peelable seal. | |
- Antifog coating. | |
- Corona treated for printing up to 10 colors | |
- Excellent memory retention. | |
- Superior hot tack properties. | |
- Sealability through contaminates. | |
- Pasteurisable upto 100°C. | |
- Structure not affected by moisture. | |
- Excellent puncture resistance | |
![]() | With either solution, the type of materials best for your application depends on your needs regarding oxygen barriers, moisture barriers, sealability, and flexibility. With our knowledge and creativity, GreenPak can take all these factors into consider-ation to help you find the right forming ornon-forming film fitted to your needs. |
HIGH CLARITY
The films features a revolutionary multi-layer co-extrusion process with unique and innovative cooling properties allows the films to crystallize giving you perfect clarity.
With forming and non-forming films, we offer a clear solution for showcasing your product - so that it can capture a consumer's eyes. Both forming films and non-forming films make it possible to openly display a package's contents, in the arrangement you like best.
As a leading packaging resource, GreenPak offers forming and non-forming films to seal together and complete your packages.
STRUCTURE
Made of technologically advanced resins
Germany Reifenhauser 9 layer co-extrusion lines
Sandwiched EVOH barrier for better protection
Distinguished by excellent formability in deep draw applications
PERFECT SEALING
Lower form & seal temperatures to improve production efficiency
Wide sealing temperature range and stable average bond strength
Superior hot tack properties.
EXACT WIDTH
The unique mechanical properties of GreenPak film allows for down gauging without losing any reliability or protective properties required for your vacuum packing and MAP applications.
GreenPak FlLM & FORM have been specially designed and engineered to perform on all thermoforming machines for the majority of applications.
And we precisely control the width with +/-1mm
Contact us
Nice Lee
GreenPak | Green Packaging Material(Jiangyin) Co.,Ltd | International Trade Department
Email: nice.lee@greenpak.com.cn | WhatsApp/Wechat: +86-18352579868

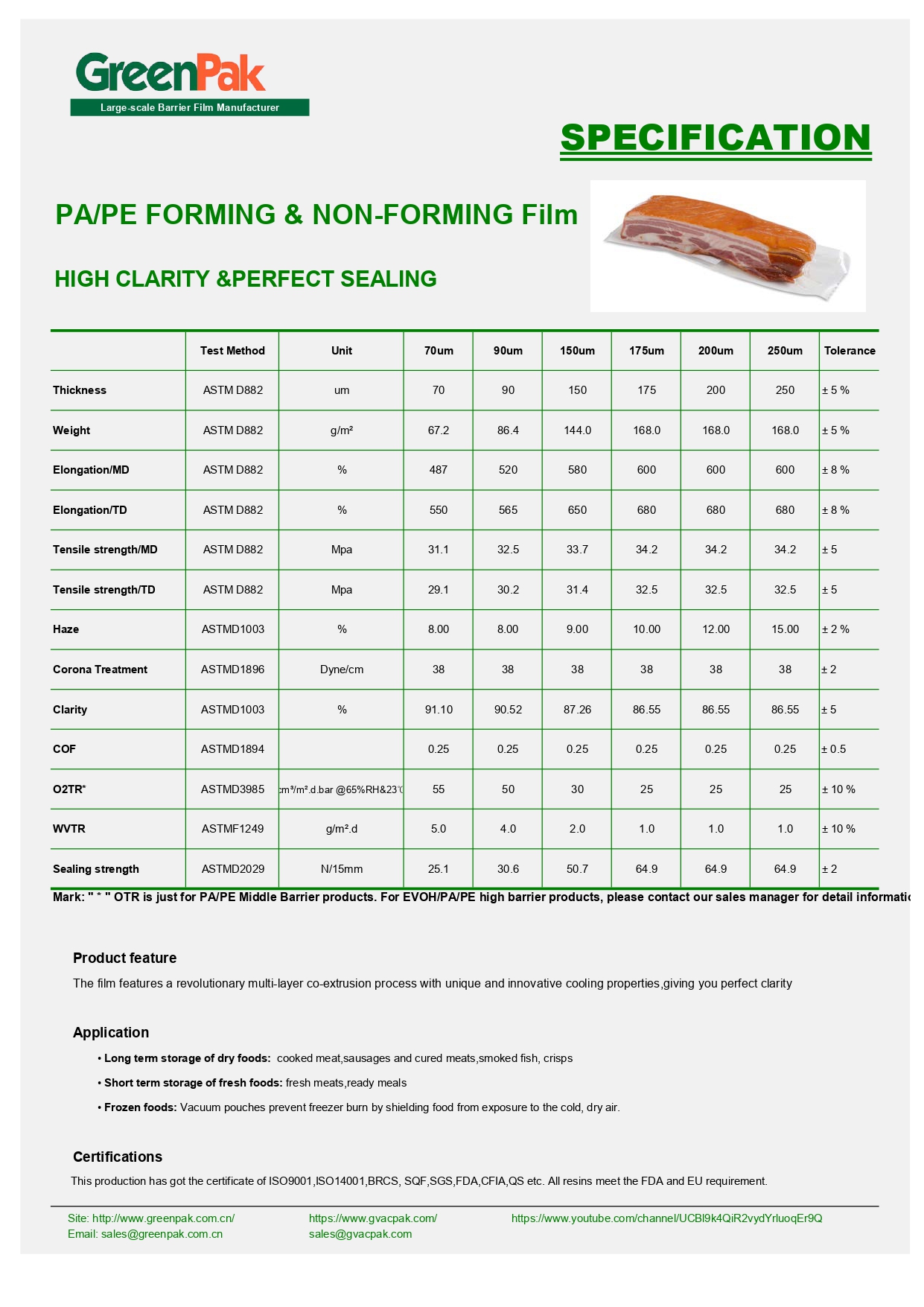

SPECIFICATION
Test Method | Unit | 70um | 90um | 150um | 175um | 200um | 250um | Tolerance | |
Thickness | ASTM D882 | um | 70 | 90 | 150 | 175 | 200 | 250 | ± 5% |
Weight | ASTM D882 | g/㎡ | 67.2 | 86.4 | 144.0 | 168.0 | 168.0 | 168.0 | ± 5% |
Elongation/MD | ASTM D882 | % | 478 | 520 | 580 | 600 | 600 | 600 | ± 8% |
Elongation/TD | ASTM D882 | % | 550 | 565 | 650 | 680 | 680 | 680 | ± 8% |
Tensile strength/MD | ASTM D882 | Mpa | 31.1 | 32.5 | 33.7 | 34.2 | 34.2 | 34.2 | ± 5 |
Tensile strength/TD | ASTM D882 | Mpa | 29.1 | 30.2 | 31.4 | 32.5 | 32.5 | 32.5 | ± 5 |
Haze | ASTMD1003 | % | 8.00 | 8.00 | 9.00 | 10.00 | 12.00 | 15.00 | ± 2% |
Corona Treatment | ASTMD1896 | Dyne/cm | 38 | 38 | 38 | 38 | 38 | 38 | ± 2 |
Clarity | ASTMD1003 | % | 91.10 | 90.52 | 87.26 | 86.55 | 86.55 | 86.55 | ± 5 |
COF | ASTMD1894 | 0.25 | 0.25 | 0.25 | 0.25 | 0.25 | 0.25 | ± 0.5 | |
O2TR* | ASTMD3985 | cm³.d .bar @65%RH&23℃ | 55 | 50 | 30 | 25 | 25 | 25 | ± 10% |
WVTR | ASTMF1249 | g/㎡.d | 5.0 | 4.0 | 2.0 | 1.0 | 1.0 | 1.0 | ± 10% |
Sealing strength | ASTMD2029 | N/15mm | 25.1 | 30.6 | 50.7 | 64.9 | 64.9 | 64.9 | ± 2 |
Mark:"*" OTR is just for PAPE Middle Barier products. For EVOH!PAPE high barrier products, please contact oursales manager for detail information
PRODUCT FEATURE
The flm features a revolutionary multillayer co-extrusion process with unique and innovative cooling properties, giving you perfect clarity
APPLICATION
Long temm storage of dry foods: cooked meat, sausages and cured meats, smoked fish, crisp!
Short term storage of fresh foods: fresh meats, ready meals
Frozen foods: Vacuum pouches prevent freezer burn by shielding food from exposure to the cold, dry air.
CONTACT US
Nice Lee
GreenPak | Green Packaging Material(Jiangyin) Co.,Ltd | International Trade Department
Email: nice.lee@greenpak.com.cn | WhatsApp/Wechat: +86-18352579868
SPECIFICATION
Test Method | Unit | 70um | 90um | 150um | 175um | 200um | 250um | Tolerance | |
Thickness | ASTM D882 | um | 70 | 90 | 150 | 175 | 200 | 250 | ± 5% |
Weight | ASTM D882 | g/㎡ | 67.2 | 86.4 | 144.0 | 168.0 | 168.0 | 168.0 | ± 5% |
Elongation/MD | ASTM D882 | % | 478 | 520 | 580 | 600 | 600 | 600 | ± 8% |
Elongation/TD | ASTM D882 | % | 550 | 565 | 650 | 680 | 680 | 680 | ± 8% |
Tensile strength/MD | ASTM D882 | Mpa | 31.1 | 32.5 | 33.7 | 34.2 | 34.2 | 34.2 | ± 5 |
Tensile strength/TD | ASTM D882 | Mpa | 29.1 | 30.2 | 31.4 | 32.5 | 32.5 | 32.5 | ± 5 |
Haze | ASTMD1003 | % | 8.00 | 8.00 | 9.00 | 10.00 | 12.00 | 15.00 | ± 2% |
Corona Treatment | ASTMD1896 | Dyne/cm | 38 | 38 | 38 | 38 | 38 | 38 | ± 2 |
Clarity | ASTMD1003 | % | 91.10 | 90.52 | 87.26 | 86.55 | 86.55 | 86.55 | ± 5 |
COF | ASTMD1894 | 0.25 | 0.25 | 0.25 | 0.25 | 0.25 | 0.25 | ± 0.5 | |
O2TR* | ASTMD3985 | cm³.d .bar @65%RH&23℃ | 55 | 50 | 30 | 25 | 25 | 25 | ± 10% |
WVTR | ASTMF1249 | g/㎡.d | 5.0 | 4.0 | 2.0 | 1.0 | 1.0 | 1.0 | ± 10% |
Sealing strength | ASTMD2029 | N/15mm | 25.1 | 30.6 | 50.7 | 64.9 | 64.9 | 64.9 | ± 2 |
Mark:"*" OTR is just for PAPE Middle Barier products. For EVOH!PAPE high barrier products, please contact oursales manager for detail information
PRODUCT FEATURE
The flm features a revolutionary multillayer co-extrusion process with unique and innovative cooling properties, giving you perfect clarity
APPLICATION
Long temm storage of dry foods: cooked meat, sausages and cured meats, smoked fish, crisp!
Short term storage of fresh foods: fresh meats, ready meals
Frozen foods: Vacuum pouches prevent freezer burn by shielding food from exposure to the cold, dry air.
CONTACT US
Nice Lee
GreenPak | Green Packaging Material(Jiangyin) Co.,Ltd | International Trade Department
Email: nice.lee@greenpak.com.cn | WhatsApp/Wechat: +86-18352579868
We are professional food packaging manufacture, we can offer vairous certifiates for marketing.
BRC certificate | SQF Certificate |
![]() | ![]() |
If you want to know more certificates information, pls contact with us:
Contact us
Nice Lee
GreenPak | Green Packaging Material(Jiangyin) Co.,Ltd | International Trade Department
Email: nice.lee@greenpak.com.cn | WhatsApp/Wechat: +86-18352579868
We are professional food packaging manufacture, we can offer vairous certifiates for marketing.
BRC certificate | SQF Certificate |
![]() | ![]() |
If you want to know more certificates information, pls contact with us:
Contact us
Nice Lee
GreenPak | Green Packaging Material(Jiangyin) Co.,Ltd | International Trade Department
Email: nice.lee@greenpak.com.cn | WhatsApp/Wechat: +86-18352579868
