Co-extrusion Nylon_PE vacuum film for vacuum bag making

PA/PE co-extrusion film is a kind of multi-layer flexible film with medium barrier for food package.
Contact for more informaiton:
Email: Amanda.yuan@greenpak.com.cn
Whatsapp: +86-15706186955
Availability:
facebook sharing button
twitter sharing button
line sharing button
wechat sharing button
linkedin sharing button
pinterest sharing button
whatsapp sharing button
sharethis sharing button

|

 Product Description

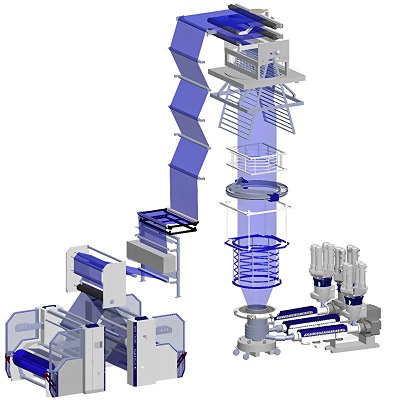

GreenPak's Multi-layers Co-extrusion barrier film is generally produced by a multi-layer co -extrusion blowing process or casting process. Multi-layer co-extrusion has excellent barrier performance, mechanical properties, tensile forming performance, and heat sealing performance, and does not require additional compounding during the processing, nor does it involve printing ink, adhesives, and additive residues. Therefore, it is a relatively green and environmentally friendly technology Cost advantages in food packaging technology and processes.


IMG_8280.HEIC

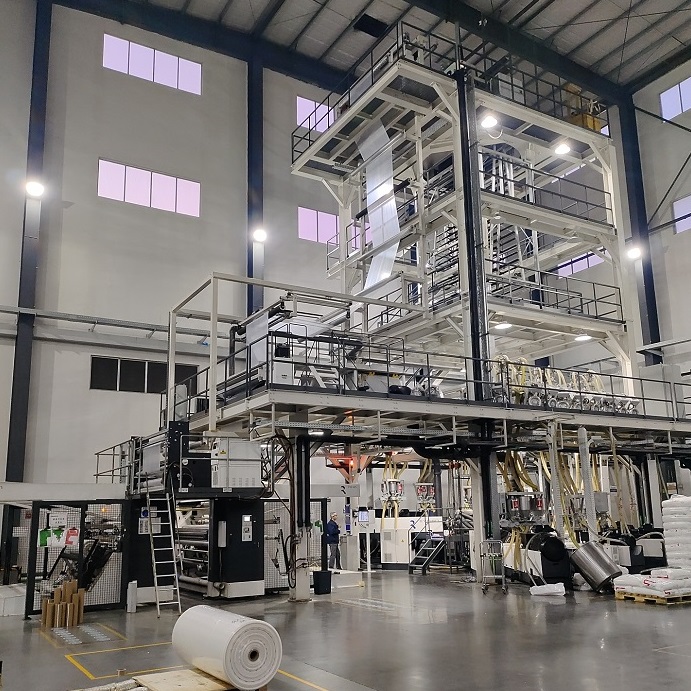

Film blowing

2-3

Checking

PA&PE film (1)

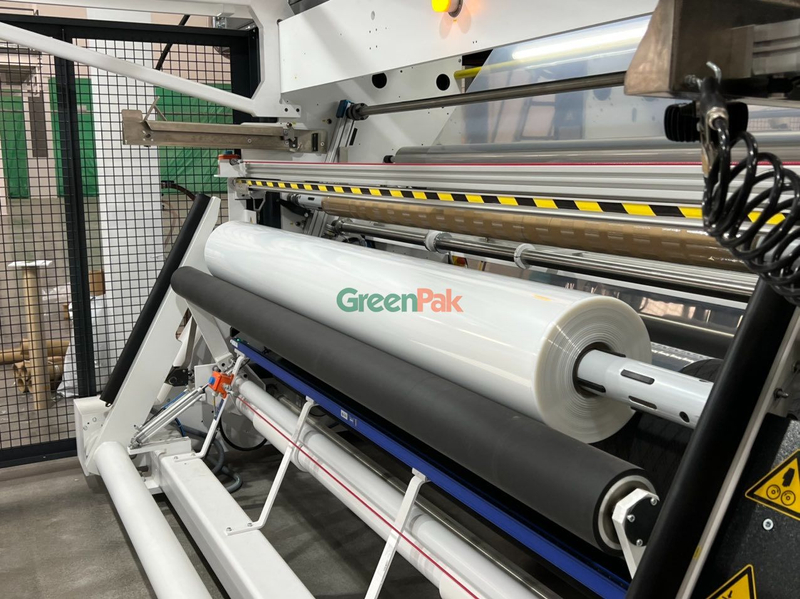

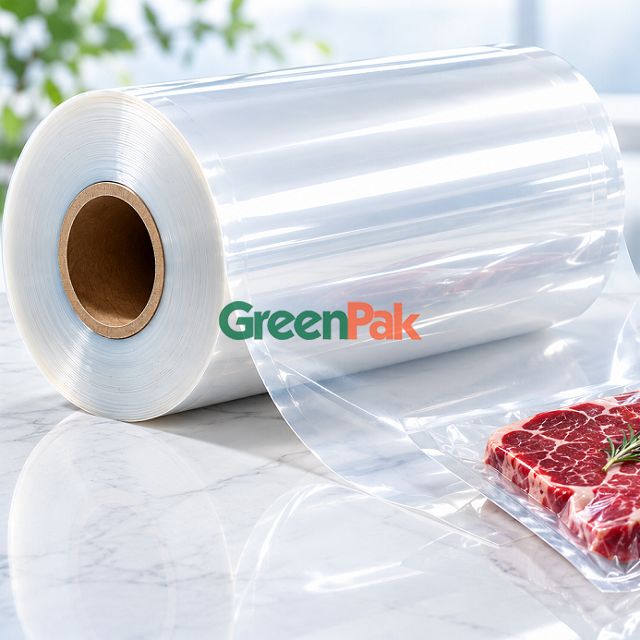

Clear film roll

Greenpak vacuum pouches (9)

Bag making

vacuum bag 1

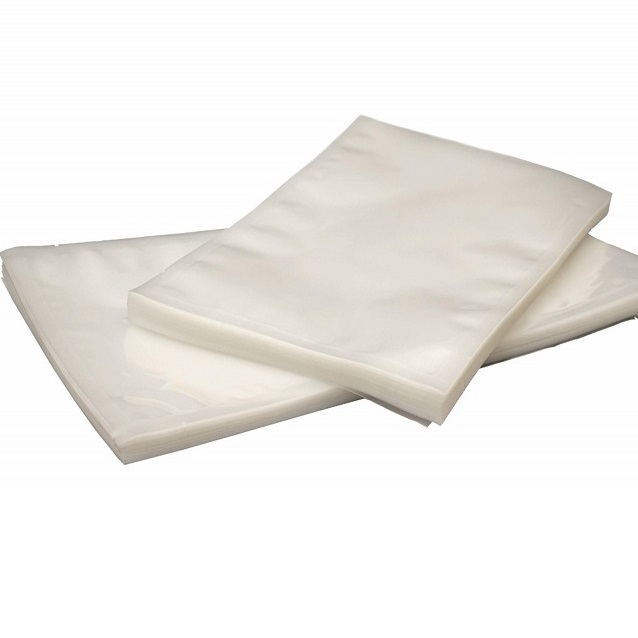

Vacuum bag


IMG_2176.HEIC

 Blue color

IMG_9129

 Yellow color

|

 Specifications


Material: Co-extruded Mutilayer Film, PA/PE, PA/EVOH/PE, PE/EVOH/PE

Roll Size: Available in different widths and lengths to suit your needs

Thickness: From 30um to 200um


Why Choose Our vacuum film?


  • The multi-layer co extruded barrier film structure can combine materials with different properties according to needs, making it have multiple properties at the same time. For example, for heat sealing and packaging machinery, if the film needs to have good mechanical processing performance, MDPE or HDPE materials are used in multi-layer structures to improve the strength and stiffness of the film, ensuring good mechanical processing performance. On the other hand, metallocene polyethylene materials with good heat sealing performance are used in the inner layer to make the film have good heat sealing performance and mechanical performance, better meeting packaging needs. In order to meet different barrier needs, You can choose PA, EVOH, etc. to meet different barrier requirements of the film.

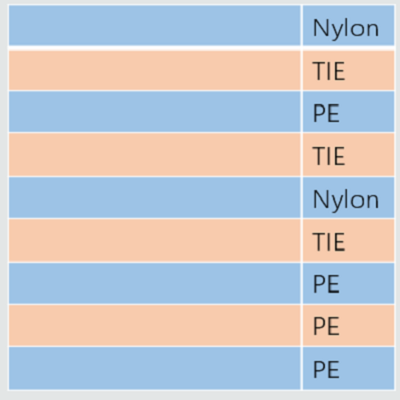

  • The structures of multi-layer co extruded films can be divided into two categories, namely symmetric structures (PE/PA/PE) and asymmetric structures (PA/PE/PA/PE).




                   Certifications: ISO9001&ISO14001/ SQF/ BRC/ SGS BPA FREE & ROSH & REACH & EU MIGRATION




Certifications-GREENPAK

|

 Quality Assurance

Imported Excellence: Our machines from Germany, represents the pinnacle of technology and precision.
Premium Raw Materials: We exclusively source materials from reputable suppliers such as BASF and ExxonMobil in the USA, ensuring the safety and quality of our products.
Rigorous Quality Control: Our dedicated QC department meticulously monitors the entire production process, conducting inspections, retaining samples, marking each product, and performing comprehensive testing.
Traceable Assurance: Each box of our products is fully traceable, reflecting our unwavering commitment to delivering high-quality goods and maintaining transparency in our production practices.
Quality Assurance-GREENPAK
Quality Assurance-GREENPAK
Quality Assurance-GREENPAK





Your requirements and orders will be well taken care of in Greenpak.

If you need free samples or any inquiry for our pouches or films, please contact with us as below:
