Emnossed Vacuum Sealer Roll Bag For Food Packaging For Household

Embossed vacuum pouch is one of the most popular product,they feature a textured surface with raised patterns or ridges. The embossed texture helps to create channels or air channels within the pouch when it is vacuum-sealed, allowing air to be effectively removed from the package.

Conatct me :  emily.lu@greenpak.com.cn

Whatsapp: +8615852610727

Availability:
facebook sharing button
twitter sharing button
line sharing button
wechat sharing button
linkedin sharing button
pinterest sharing button
whatsapp sharing button
sharethis sharing button

| Product Description


GreenPak's Embossed Roll is one of the most popular product,they feature a textured surface with raised patterns or ridges. The embossed texture helps to create channels or air channels within the pouch when it is vacuum-sealed, allowing air to be effectively removed from the package.

Embossed roll are commonly used in various industries, including food packaging, medical packaging, and industrial packaging, where preserving product freshness and extending shelf life are critical considerations. They are available in different sizes, thicknesses, and configurations to suit the specific packaging requirements of different products.


| TWO DIFFERENT PATTERNS


dot_副本

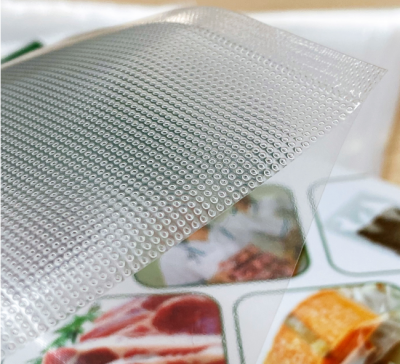

Dot Pattern

Economical

 Thickness: 80um

diamond pattern_副本

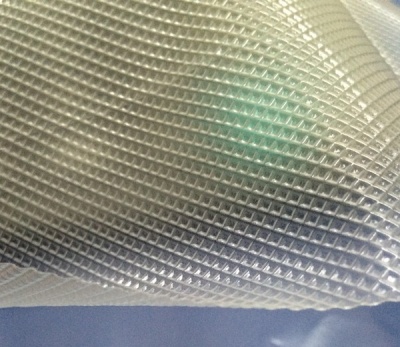

Diamond Pattern

Professional

 Thickness: 90, 125um



| Product Details


Product Name Embossed Roll
Application Sausage, Meat, Fish, Cheese, Seafood
Material PA/PE
Bag Style 2 Side Seal
Size Customise
Thickness 80um, 90um, 125um


| Related Product



| Comment & FAQ

1. Are you a factory?

A: Yes. We imported resin, produce the film, then produce the bags all by ourselves.

2. Can you supply samples?

A: Of course. Free samples are available.

3. What's your MOQ?

A: Usually, the MOQ of each order is 1000k.



| Contact me


Emily Lu

E-mail: emily.lu@greenpak.com.cn WhatsApp: +86 15852610727  | WeChat+86 15852610727

GreenPak | Green Packaging Material (Jiangyin) Co,LTD

Add: No.220 Xiehe Qingyang Town, Jiagyin City Wuxi, PR China

二维码

Different thickness parameters are different, the following are the parameters of each thickness for your reference.




Test Method Unit 60um 70um 90um 100um 120um 150um 175um
Thickness ASTM D882 um 60 70 90 100 120 150 175
Weight ASTM D882 g/m² 57.6 67.2 86.4 96.0 115.2 144.0 168.0
Elongation/MD ASTM D882 % 523 550 565 585 605 650 680
Elongation/TD ASTM D882 % 460 487 520 550 565 580 600
Tensile   strength/MD ASTM D882 Mpa 30.5 31.1 32.5 33.1 33.5 33.7 34.2
Tensile   strength/TD ASTM D882 Mpa 28.9 29.1 30.2 30.9 31.3 31.4 32.5
Haze ASTMD1003 % 10.00 11.14 13.90 14.95 18.47 22.66 31.15
Corona   Treatment ASTMD1896 Dyne/cm 38 38 38 38 38 38 38
Clarity ASTMD1003 % 91.10 91.10 90.52 89.57 88.58 87.26 86.55
COF ASTMD1894
0.25 0.25 0.25 0.25 0.25 0.25 0.25
O2TR* ASTMD3985 cm³/m².d.bar   @65%RH&23℃ 60 55 50 45 40 30 25
WVTR ASTMD1249 g/m².d 5.0 5.0 4.0 4.0 3.0 2.0 1.0
Sealing   strength ASTMD2029 N/15mm 22.2 25.1 30.6 33.2 41.1 50.7 64.9
Shelf life
Month 24 24 24 24 24 24 24


| Contact me


Emily Lu

E-mail: emily.lu@greenpak.com.cn WhatsApp: +86 15852610727  | WeChat+86 15852610727

GreenPak | Green Packaging Material (Jiangyin) Co,LTD

Add: No.220 Xiehe Qingyang Town, Jiagyin City Wuxi, PR China

二维码


SQF
BRC
FDA
379A717F-B5A6-4c0d-9480-50CE21C8A23D


| Contact me


Emily Lu

E-mail: emily.lu@greenpak.com.cnWhatsApp: +86 15852610727  | WeChat+86 15852610727

GreenPak | Green Packaging Material (Jiangyin) Co,LTD

Add: No.220 Xiehe Qingyang Town, Jiagyin City Wuxi, PR China

二维码


GreenPak is a big and professional manufacturer specializing in R&D, Production, Sale and Service of vacuum pouches &roll, multi-layer co-extrusion barrier film and functional film.Using the famous equipment of Reifenhauser from Germany.

We have certifications about food safety such as BRC, SQF, FDA, CFIA, ISO9001/14001 and BPA Free.


165B16E2-92D6-40f5-8409-1F4D46115562


6AC41D1F-1A56-4446-8113-5F9B8A9E7D8F


| Production Process


1_副本

Bag Making Plant

IMG_8280.HEIC_副本

Film Blowing Plant

IMG_4212.HEIC_副本

Lab Room


| Contact me


Emily Lu

E-mail: emily.lu@greenpak.com.cn WhatsApp: +86 15852610727  | WeChat+86 15852610727

GreenPak | Green Packaging Material (Jiangyin) Co,LTD

Add: No.220 Xiehe Qingyang Town, Jiagyin City Wuxi, PR China

二维码
